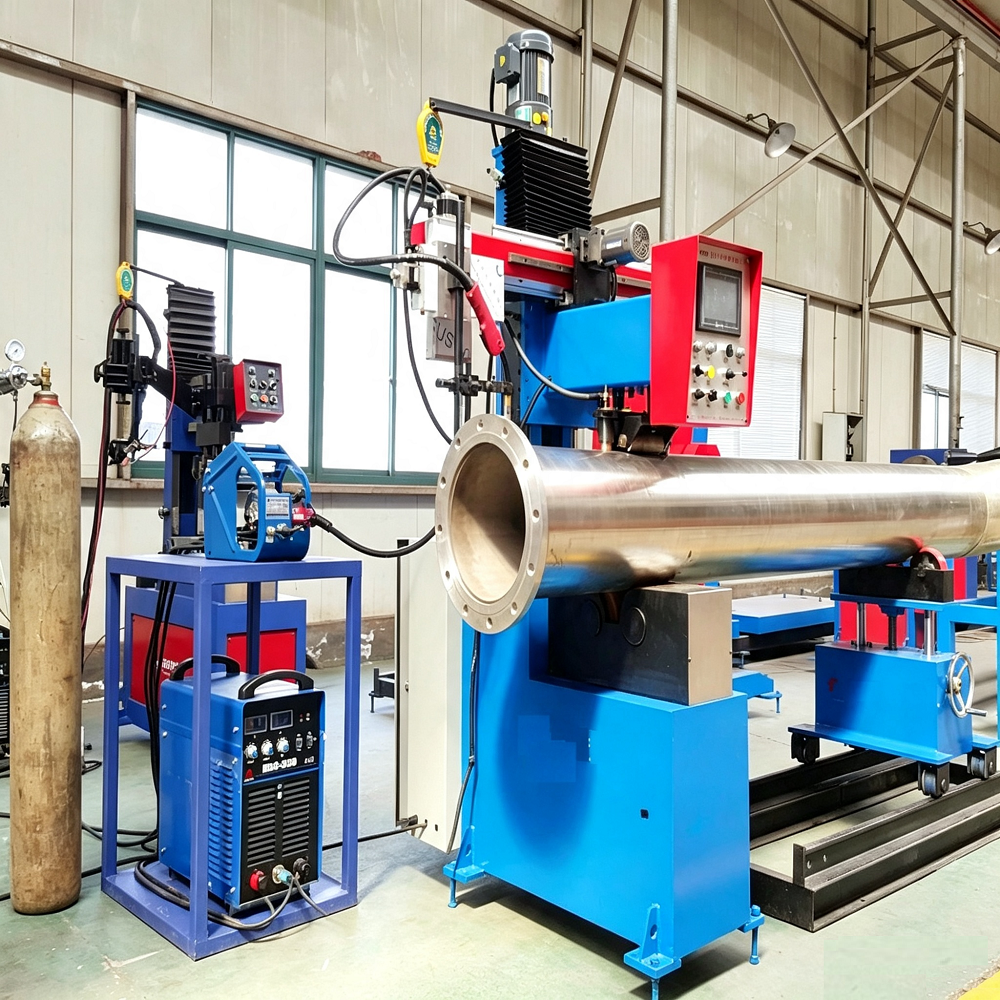

PPAW / PPBW Series
WINCOO
WINCOO ENGINEERING CO.,LTD's PPAW/PPBW press roller type automatic pipe welding machine is the core welding station of a modern pipe spool fabrication line. It automatically welds pipe-to-pipe and pipe-to-fitting butt joints (flange, elbow, tee, reducer) with single-side welding and double-side formation, delivering RT/UT qualification rates above 98% while dramatically reducing dependence on skilled manual welders.

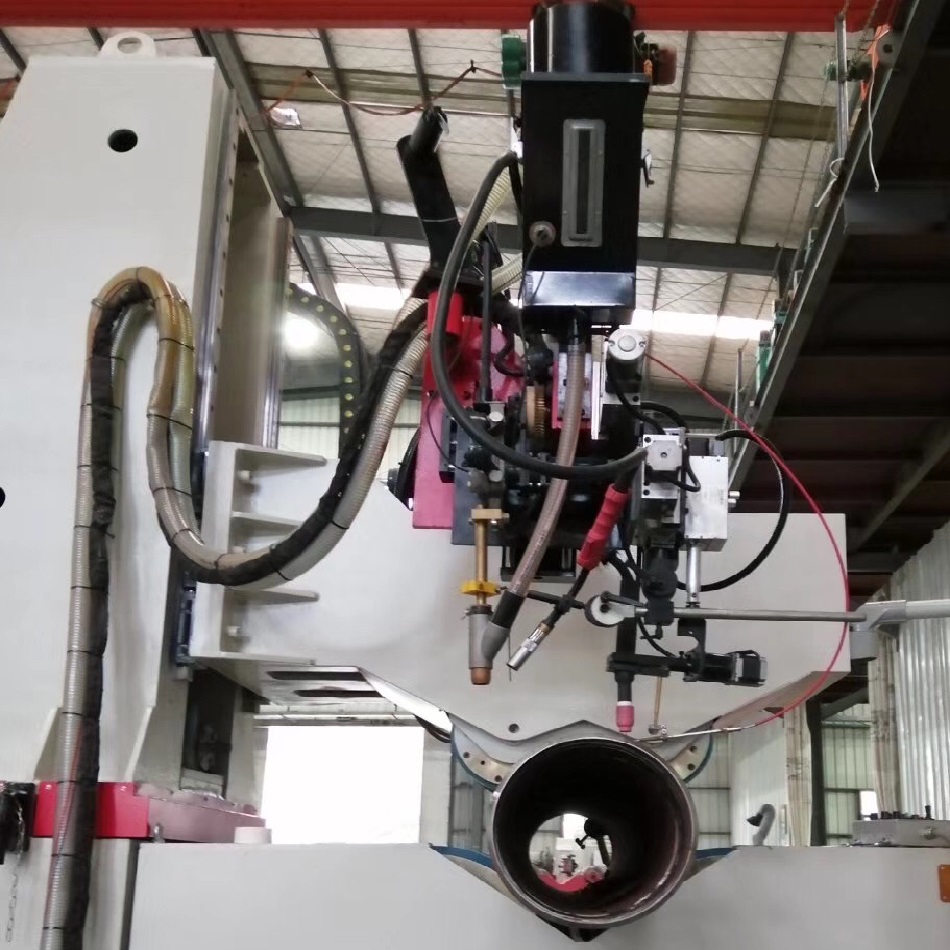

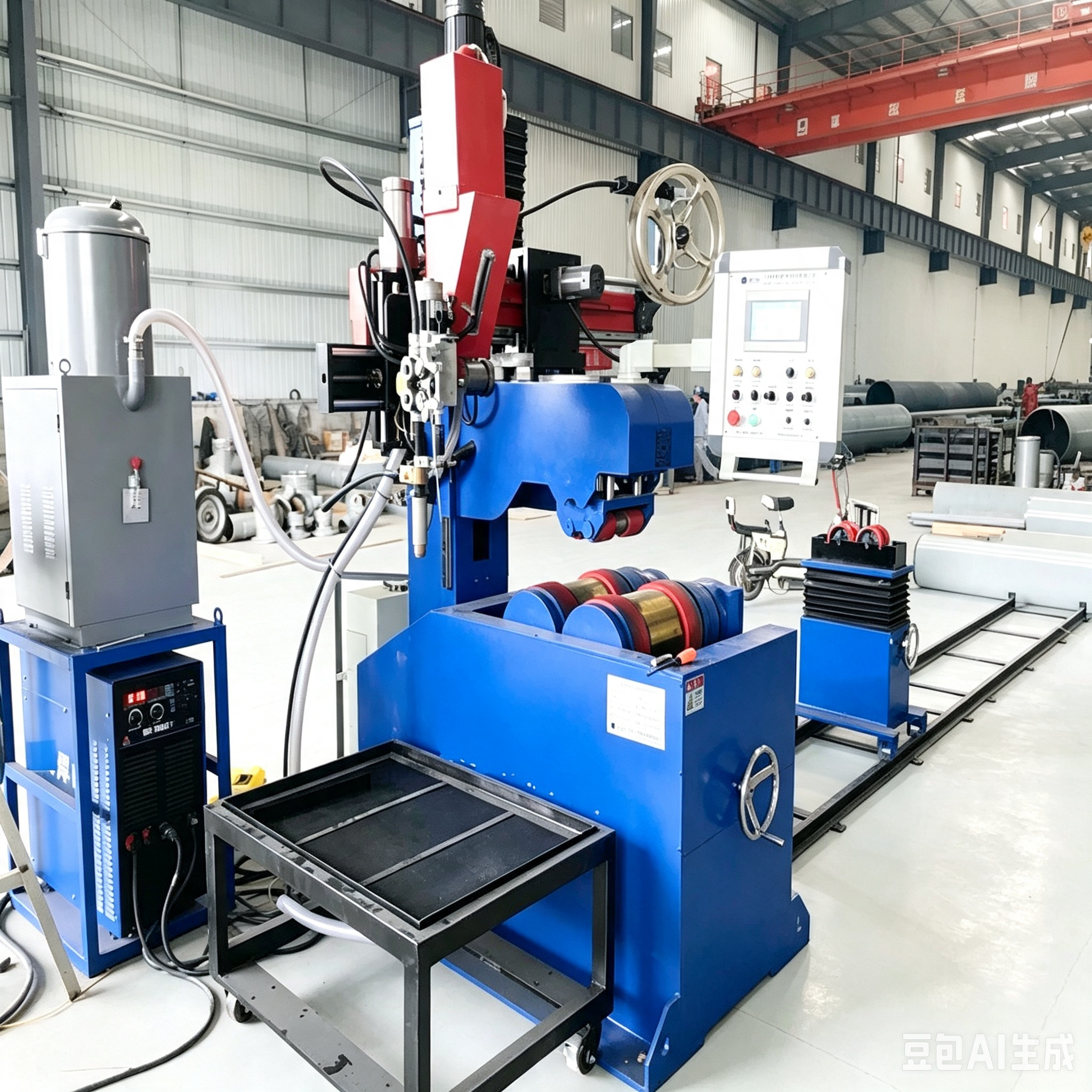

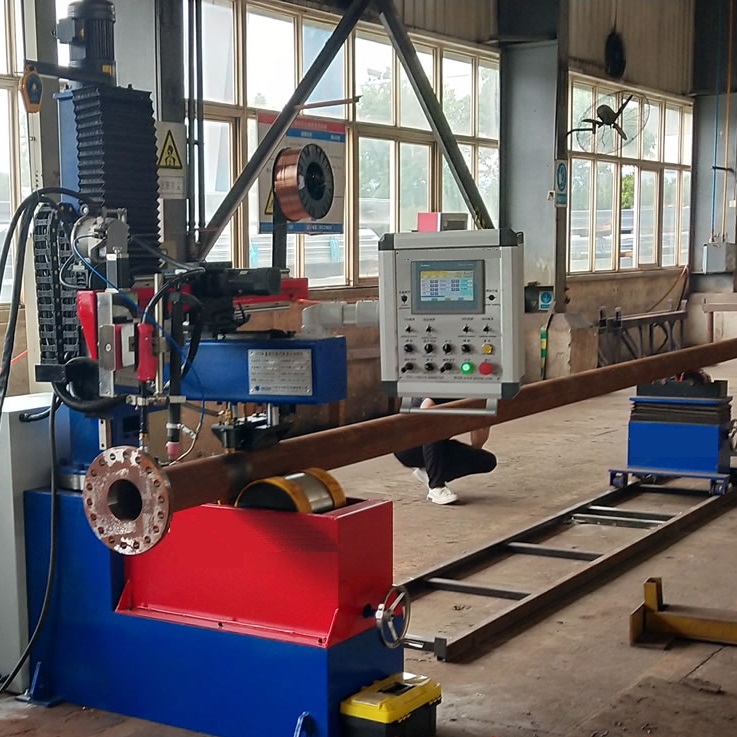

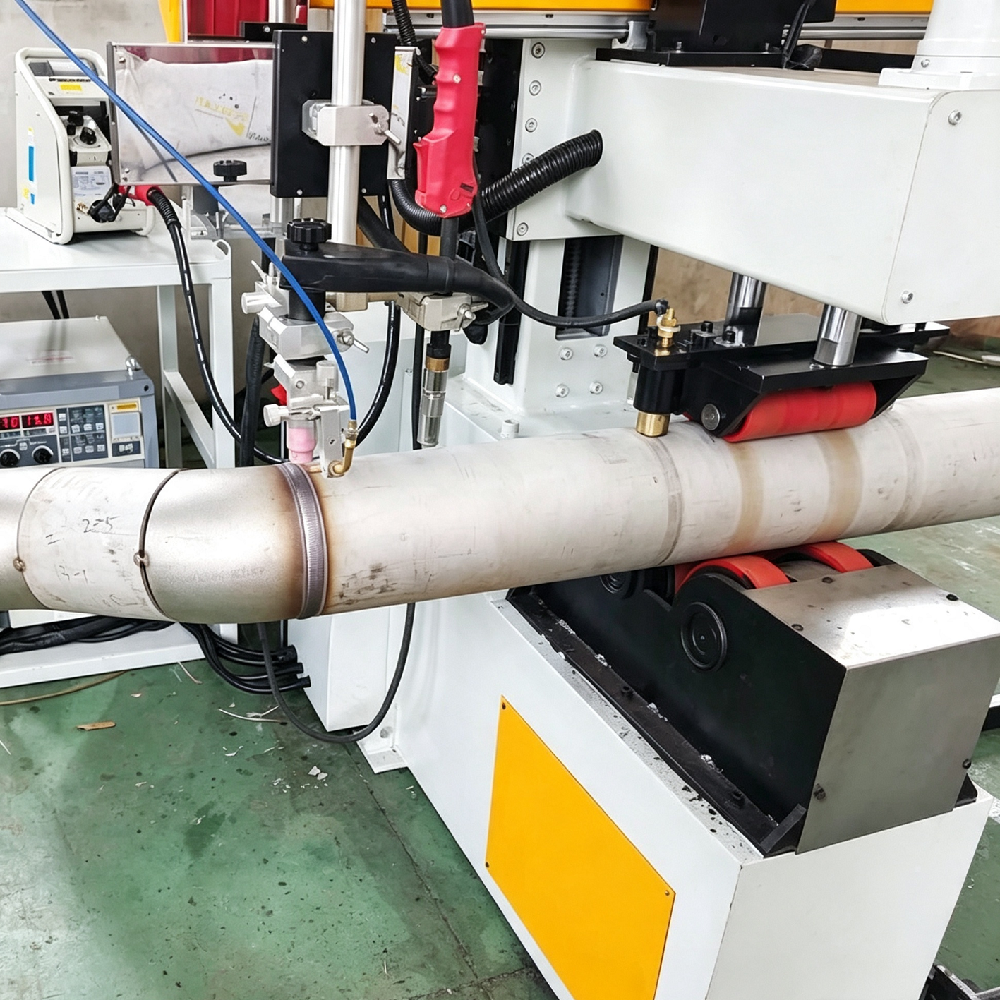

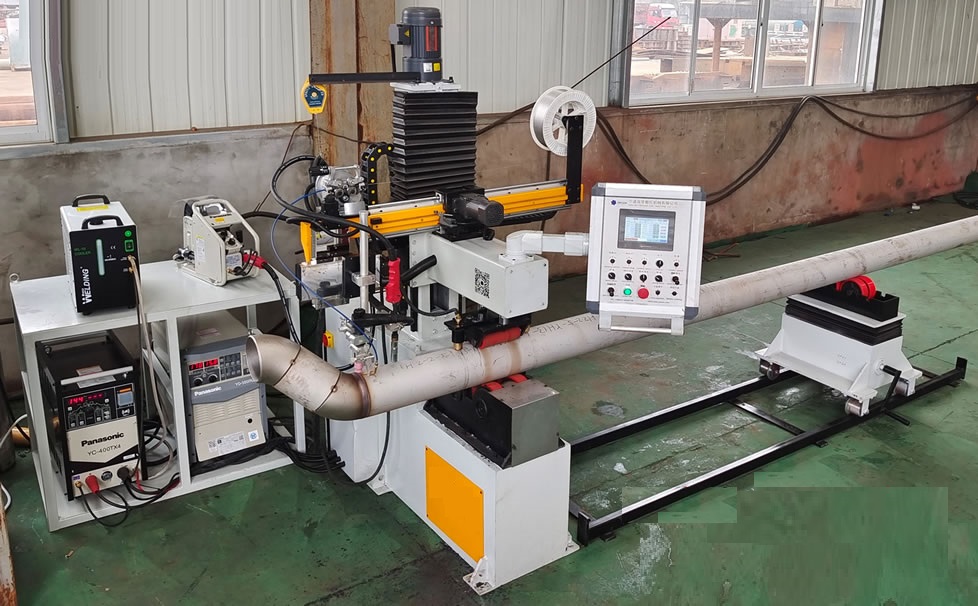

The press roller type automatic pipe welding machine rotates the assembled pipe spool on precision polyurethane drive rollers while a column-and-cantilever welding head travels along a linear guide rail, keeping the torch at the optimum welding position throughout the entire circumference. The result is a uniform, aesthetically perfect weld bead — pass after pass, spool after spool — without rotating the workpiece in a chuck.
The machine supports TIG, hot-wire TIG, CO2/MIG/MAG and fine-wire submerged arc welding (SAW), which means one workstation can handle automatic root pass, filling and cap welding of carbon steel, alloy steel, stainless steel and low-temperature steel pipes across the full range of a piping prefabrication workshop.
Model | PPAW-12 | PPAW-16 | PPBW-24 | PPBW-32 |
Pipe diameter | Φ40–325 mm | Φ40–426 mm | DN50–600 (2"–24") | DN100–800 (4"–32") |
Wall thickness | 2–30 mm | 2–30 mm | 3–50 mm | 3–60 mm |
Workpiece length | ≥300 mm | ≥300 mm | ≤12 m | ≤12 m |
Welding processes | TIG / Hot-wire TIG / CO2 / MIG / MAG / Fine-wire SAW
| GMAW + Fine-wire SAW
| ||
Welding speed | TIG: 70–150; Hot-wire TIG: 200–400; CO2/MAG/MIG: 200–400 mm/min
| CO2/MAG: 200–350; SAW: 300–600 mm/min
| ||
Drive rollers | Active 4 sets polyurethane-coated; precision gear reducer + turbo-worm drive
|
|
| |
Drive wheel speed | 0–500 mm/min, VFD stepless
| 0–1000 mm/min, VFD stepless
| ||
Pressure arm lift | Electric, 0–500 mm
| Motor + gear reducer + screw + linear guide
| ||
Pressure arm rotation | — |
| 0–360°, floating ±50 mm
| |
Cross arm travel | 0–500 mm (rack & pinion + linear guide)
| 1000 mm telescopic
| ||
Wire diameter | TIG/CO2/MAG/MIG Φ1.0–1.6; SAW Φ1.6–2.5 (fine wire)
| TIG/GMAW Φ1.0–1.6; SAW Φ1.6–3.0
| ||
Power supply | Three-phase 380V / 50Hz
| Three-phase five-wire 380V±10% / 50Hz±1Hz
| ||

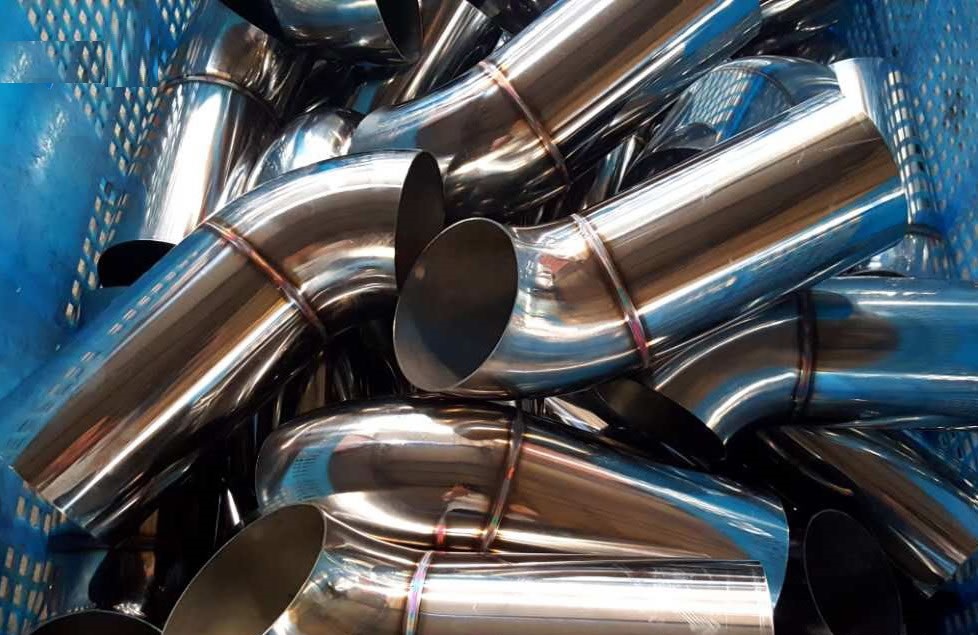

Weld quality | Single-side welding double-side formation; RT ≥98%; residual height ≤1.5 mm (adjustable)
|
|
| |
Multi-Process Capability on One Station Configure TIG, hot-wire TIG, CO2/MIG/MAG or fine-wire SAW — singly or in combination — to realize automatic root pass, filling and cap welding. Hot-wire TIG (WINCOO's proprietary system) achieves more than twice the deposition rate of cold-wire TIG.
Roller-Drive Rotational Welding The fitted spool is rolled onto the press-roller drive unit; precision gear reducer with turbo-worm transmission rotates the pipe smoothly and stably. Roller rotation speed is steplessly adjustable via frequency converter to match different diameters and wall thicknesses.
CNC Linear Oscillation Imported closed-structure CNC oscillators (stepping motor + high-precision ball screw + imported linear guide rail) produce even weld ripple with adjustable swing width (max 30 mm), frequency (20–60 times/min) and left/right dwell time (0–3 s) for beautiful weld appearance.
WSP Pipe Welding Expert Control System PLC + touch-screen HMI (WEINVIEW) integrates all process parameters with a built-in welding parameter database. Operators with no welding experience can master the machine within 2–3 days of training.
International Brand Components Lincoln Flextec 650 multi-process welding power source, Delta PLC/inverter, Schneider switches, WEINVIEW touch screen, TBI linear guides — CE, ASME and HSE compliant design.

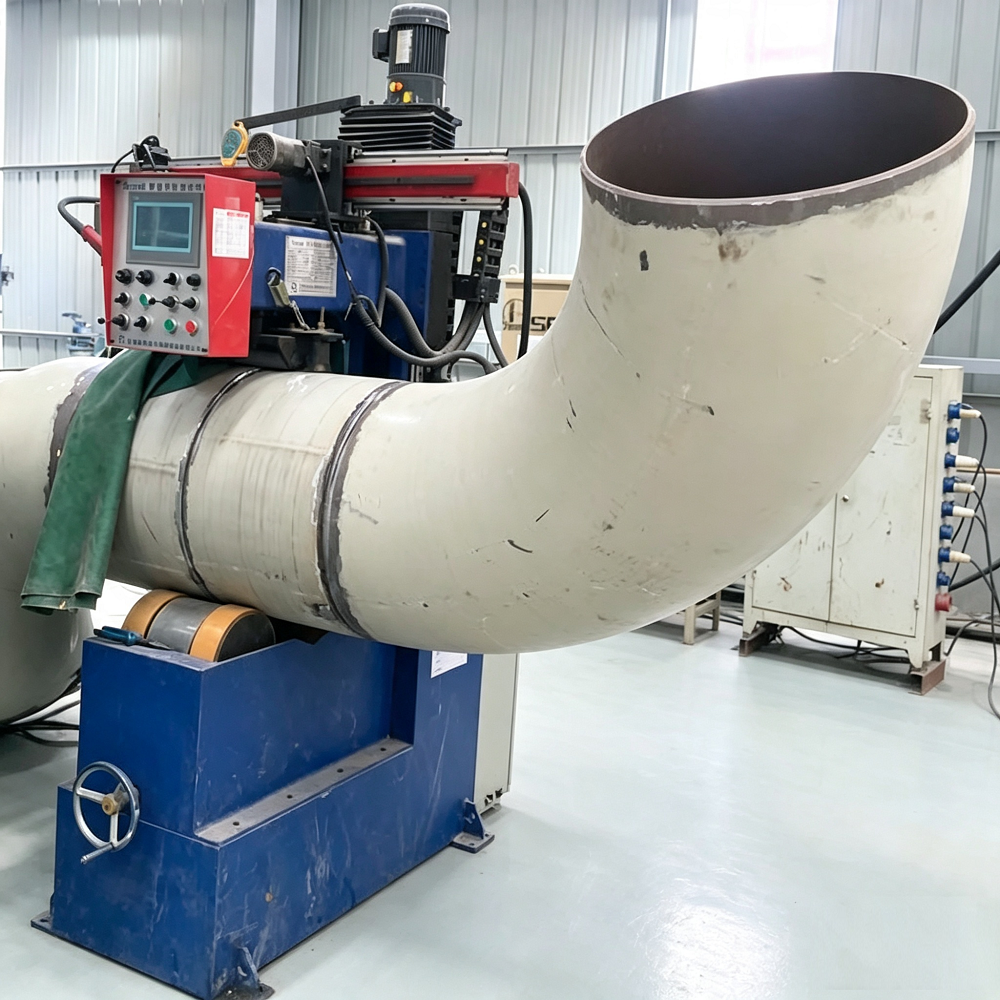

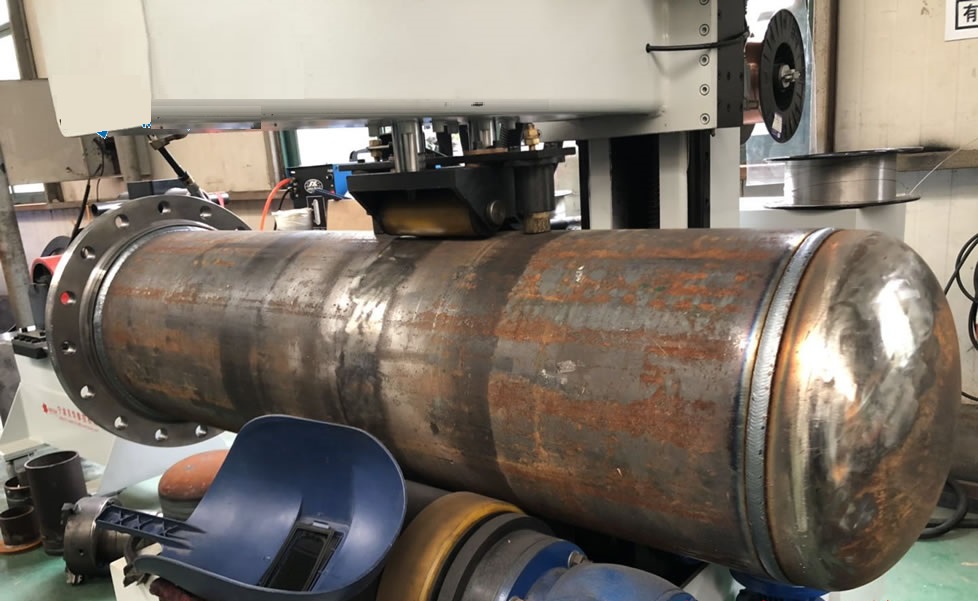

Wide Joint Coverage Automatic butt welding of pipe + pipe, pipe + taper pipe, pipe + flange, pipe + elbow and pipe + tee — the full spool joint portfolio of a pipe fabrication line.
The PPAW/PPBW series is a drop-in welding station between the fitting-up (tack weld) station and downstream QC in the WINCOO pipe spool prefabrication line:
Cutting & Beveling → Multi-Function Fitting-Up → Pipe Welding Machine → Inspection & Delivery
Typical industries:
Oil & gas and petrochemical piping prefabrication
Shipbuilding and offshore module fabrication
Power plant (thermal & nuclear) process piping
Boiler and pressure vessel pipe systems
Steel structure and general piping workshops
Proven in international projects — delivered to fabricators in Indonesia, the UAE and beyond with FOB Shanghai / CFR terms and 12-month warranty
Rapid ROI — automatic welding raises output 3–4 times over manual methods and reduces the need for certified manual welders
Simplified operation — presets and one-touch parameter recall; zero-experience operators learn in days
Complete line supply — WINCOO provides the full pipe prefabrication line (cutting, fitting-up, welding, conveying), not just a single machine
Contact WINCOO ENGINEERING CO.,LTD for a machine configuration matched to your pipe diameter range, wall thickness schedule and monthly throughput target.
