Beyond Alignment: The Future of Pipe Spool Assembly Is Here - Automated Fit-Up with WINCOO Smart Fit Systems

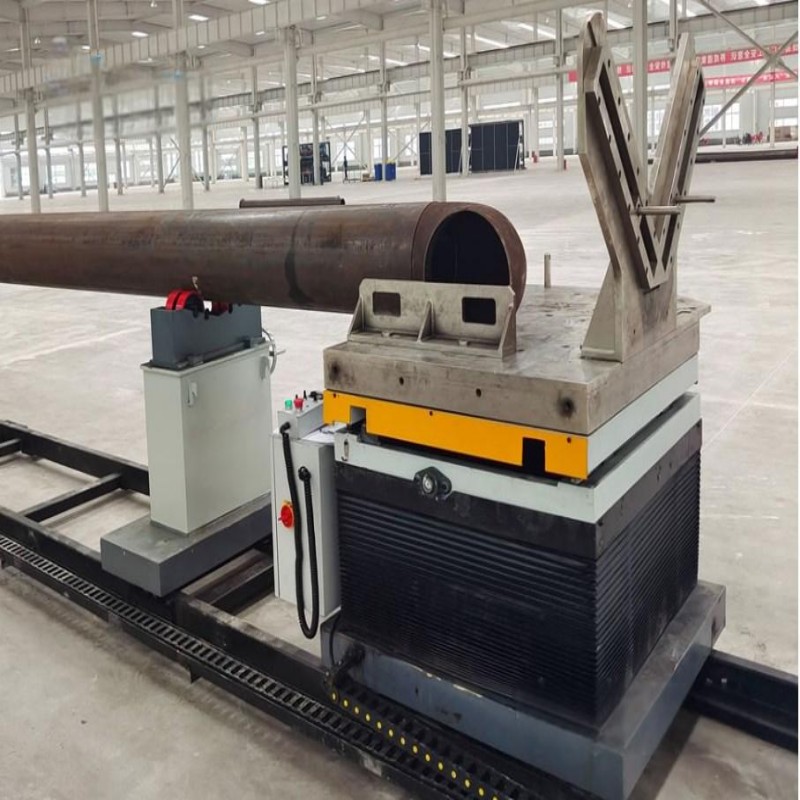

The future of pipeline prefabrication is automated, data-driven, and relentlessly efficient. Manual fit-up is no longer just slow; it's a barrier to achieving the productivity, quality consistency, and traceability demanded by modern projects. Introducing the WINCOO SmartFit Automated Pipe Fit-Up System – where precision meets intelligence.

Move Beyond Basic Alignment:

Modern pipe spools demand more than just lining up ends. Complex geometries, stringent weld procedure qualifications, and traceability requirements necessitate a smarter approach. Manual processes simply can't keep pace.

WINCOO SmartFit: Intelligence Integrated:

Our advanced fit-up system is engineered for the next generation of prefab:

• Automated Centering & Alignment: Vision systems and precision actuators automatically detect pipe ends and achieve perfect ID/OD centering and bevel alignment without constant operator intervention. Dramatically reduce human error.

• Programmable Fit-Up Sequences: Store and recall optimal parameters for different spool configurations. Ensure consistent application of root gaps and alignment tolerances every single time.

• Integrated Seam Tracking (Optional): Prepare for automated welding by precisely tracking the weld seam orientation during fit-up, seamlessly feeding data to downstream welding equipment.

• Real-Time Data Logging: Capture critical alignment data (gap, mismatch, angles) for each joint. Integrate with your MES/WMS for full traceability and quality assurance documentation.

• Robotic Loading/Unloading Integration: Designed to be the perfect partner for robotic material handling. Enable a truly lights-out fit-up and tacking cell for maximum throughput.

• User-Friendly HMI: Intuitive touchscreen interface allows for easy programming, monitoring, and diagnostics.

Unlock Unprecedented Value:

• Maximize Automation ROI: Create a continuous, automated flow from cutting to welding.

• Guaranteed Consistency: Eliminate variability inherent in manual processes. Meet the strictest quality standards effortlessly.

• Predictable Production: Achieve higher, more reliable output rates. Plan with confidence.

• Reduced Labor Dependency: Optimize your skilled workforce, focusing them on higher-value tasks.

• Full Digital Traceability: Automatically generate the data required for project compliance and quality records.

Embrace the future of pipe spool fabrication. The WINCOO SmartFit System isn't just a machine; it's the intelligent foundation for your automated prefab line. Contact our automation specialists today to discover the possibilities!
