Roller Type 5 Axis Pipe Spool Plasma Cutting Machine

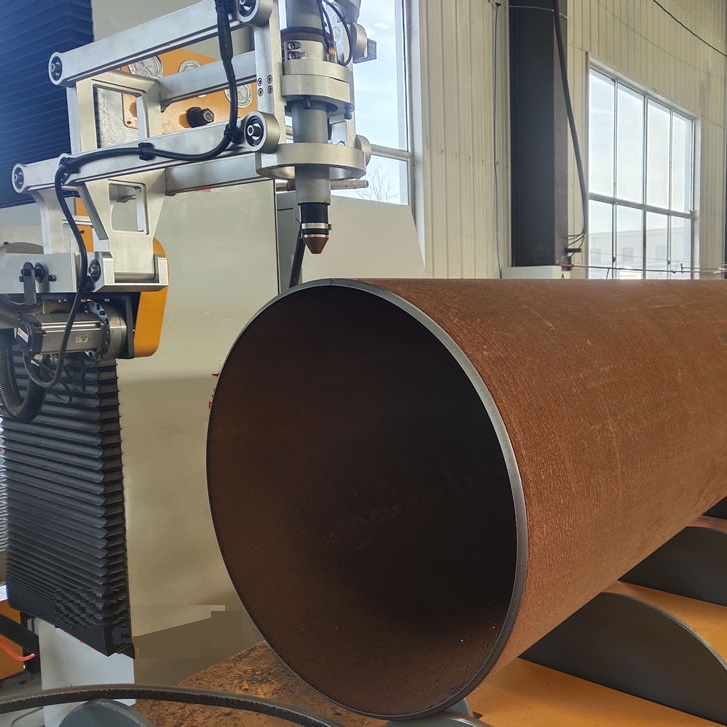

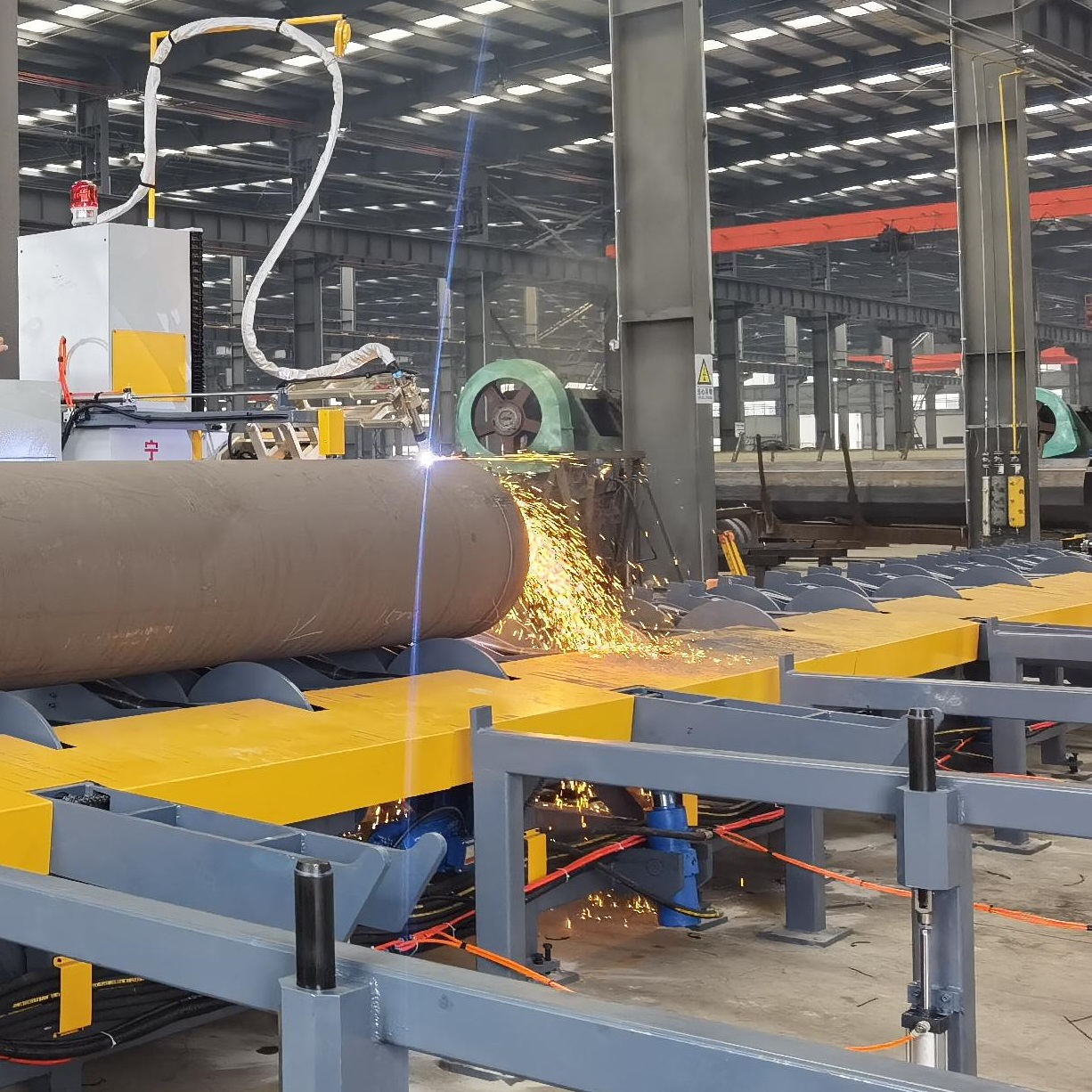

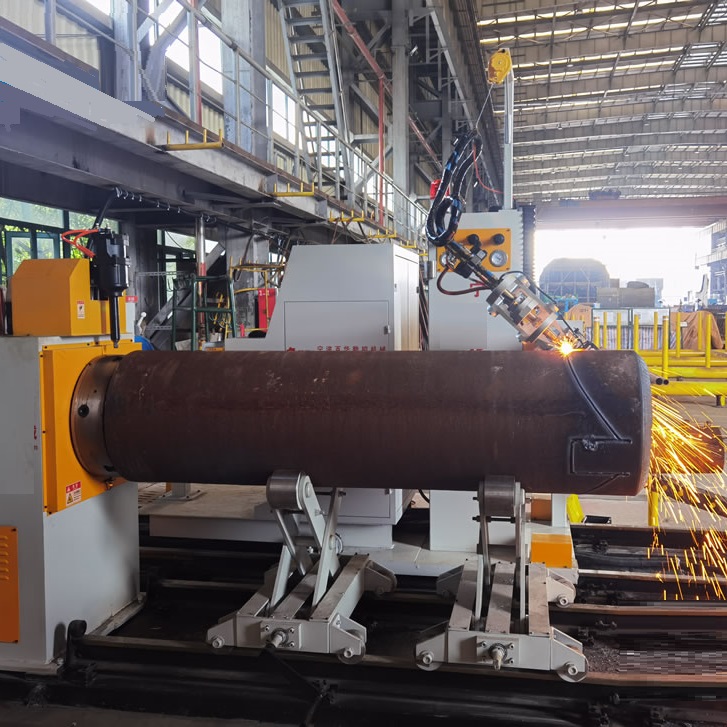

PHM series CNC pipe intersecting line cutting machine is a special equipment for cutting, beveling and curve of steel pipe.The machine is widely used in shipbuilding, construction, petrochemical, chemical, pipe tower, steel structure and other industries of the pipeline structure cutting processing, these industries have a large number of pipeline cutting processing, beveling processing and intersecting line holes, intersecting line ends and other processing, as well as commonly known as "Xiami section" elbow, such processing mostly by making samples, marking, manual lofting, manual cutting, artificial grinding and so on. After another complicated method to carry on.The PHM series CNC cutting machine developed by our company automatically cuts such workpieces, the operator does not need to program, just import cutting drawings or select cutting graphics from the library of the lPC and then input parameters such as the radius of the pipe, intersection Angle, and then start the machine with a key to automatically complete the cutting.

Availability:

Quantity:



Inquire Add to Basket

Model:
PHM SERIES
Brand:
WINCOO

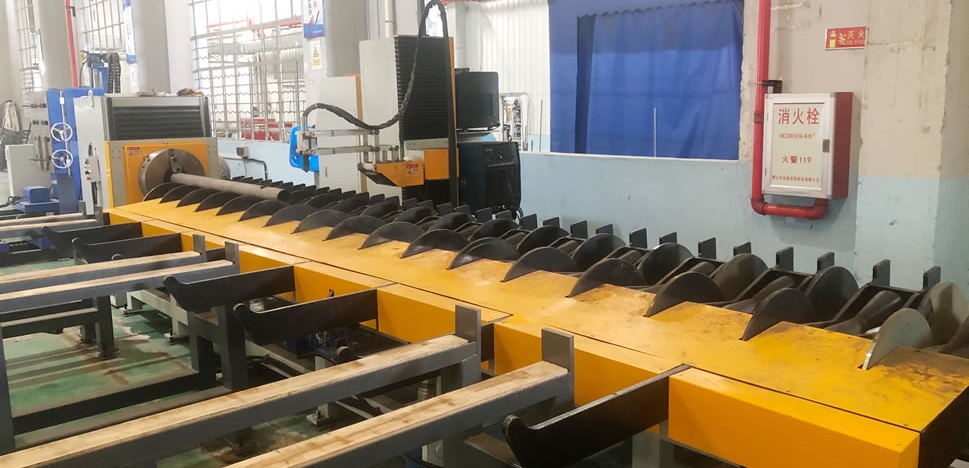

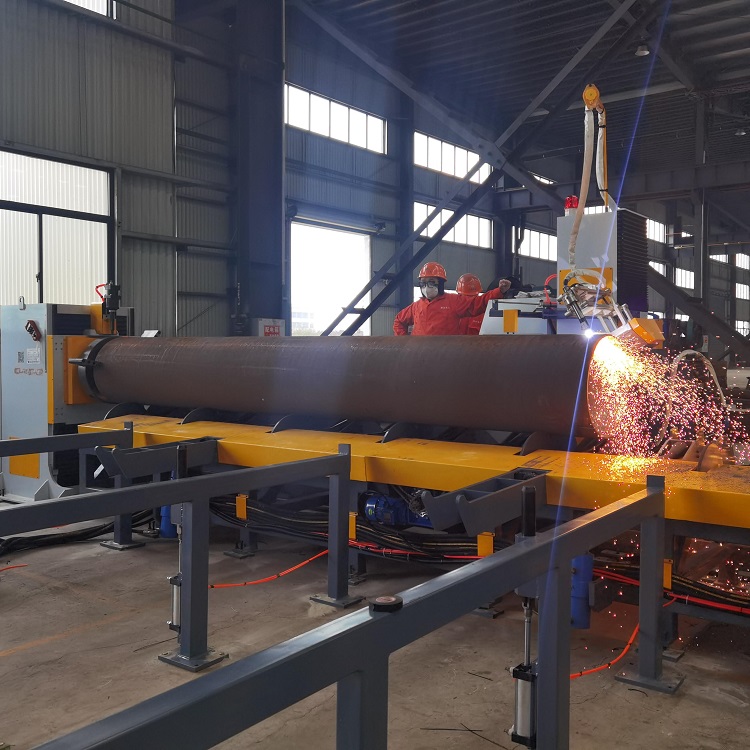

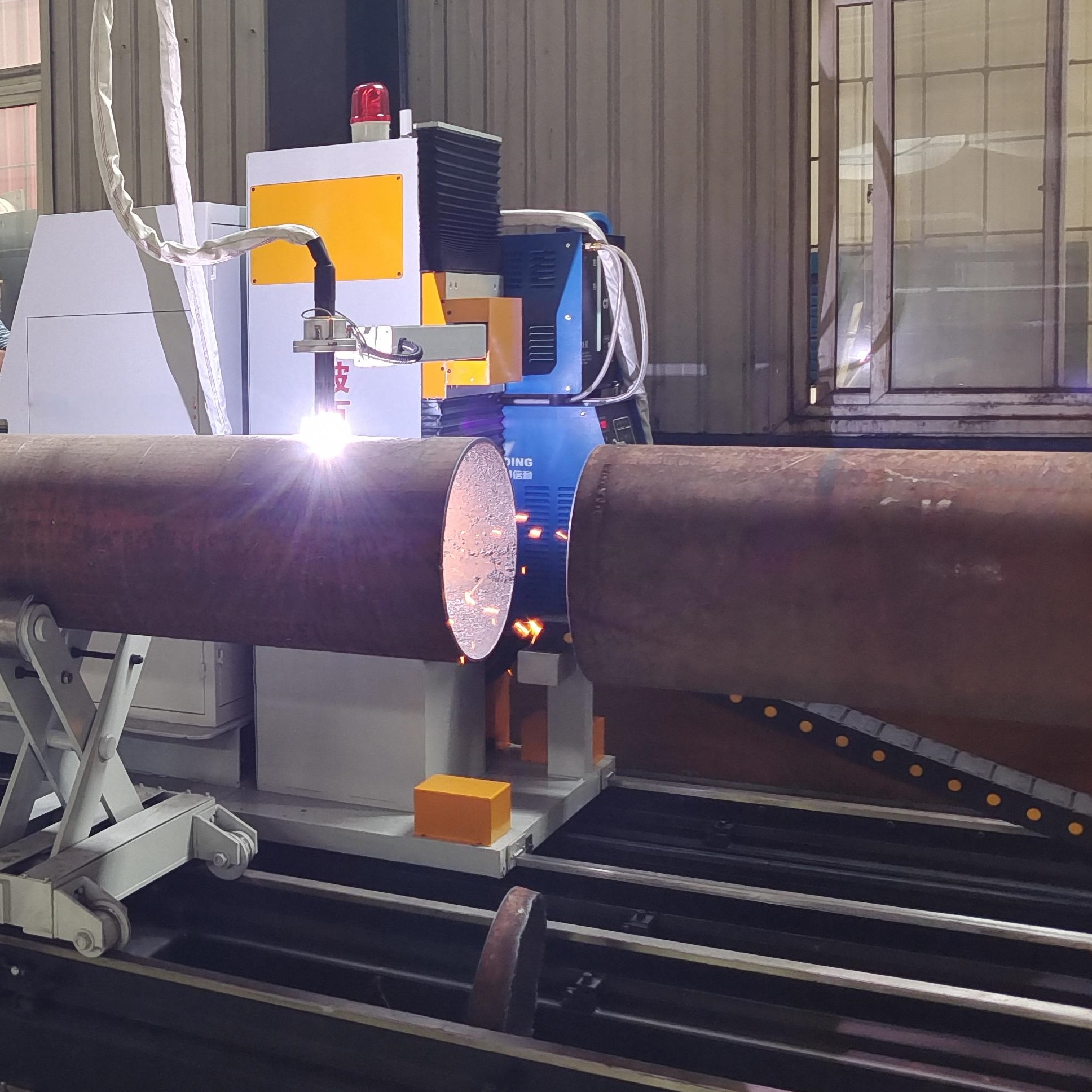

Product Description

PHM series CNC pipe intersecting line cutting machine is a special equipment for cutting, beveling and curve of steel pipe.The machine is widely used in shipbuilding, construction, petrochemical, chemical, pipe tower, steel structure and other industries of the pipeline structure cutting processing, these industries have a large number of pipeline cutting processing, beveling processing and intersecting line holes, intersecting line ends and other processing, as well as commonly known as "Xiami section" elbow, such processing mostly by making samples, marking, manual lofting, manual cutting, artificial grinding and so on. After another complicated method to carry on.The PHM series CNC cutting machine developed by our company automatically cuts such workpieces, the operator does not need to program, just import cutting drawings or select cutting graphics from the library of the lPC and then input parameters such as the radius of the pipe, intersection Angle, and then start the machine with a key to automatically complete the cutting.

Product Parameter

Model	PHM-16	PHM-24	PHM-32	PHM-40	PHM-48
Applicable pipe diameter	DN50-400	DN50-600	DN50-800	DN100-1000	DN200-1200
Cutting material	Flame cutting: carbon steel; Plasma cutting: carbon steel, alloy steel, stainless steel, etc
Cutting form	straight cut, V beveling, intersecting line hole, intersecting line end, Xiami joint, cross beveling, etc
Cutting length	12 m or as required
Moving speed	10~6000 mm/min
Cutting speed	50 mm/min -3000 m/min
Beveling Angle	0-45°
Controlled Axes	5 axis, another 6 axis,7 axis, 8 axis optional
Cutting accuracy	Angle<0.5° ,length s±1mm

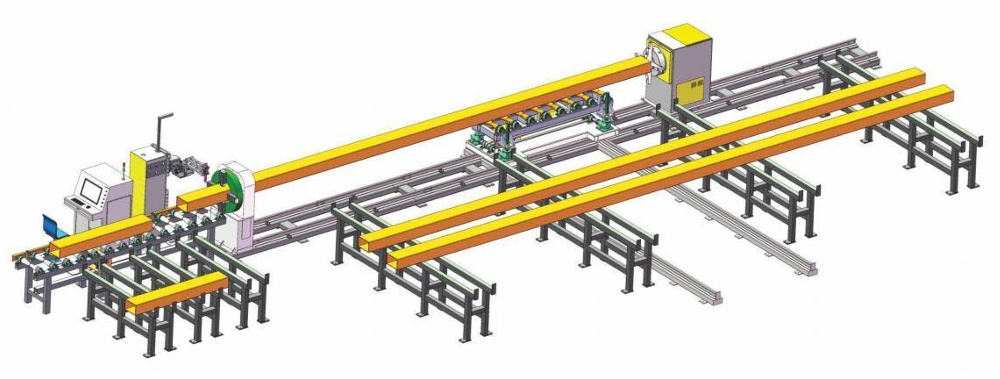

Optional model	□ standard (carriage support) □Integral rolling machine, with axial logistics conveying system and hydraulic turnover feeding system

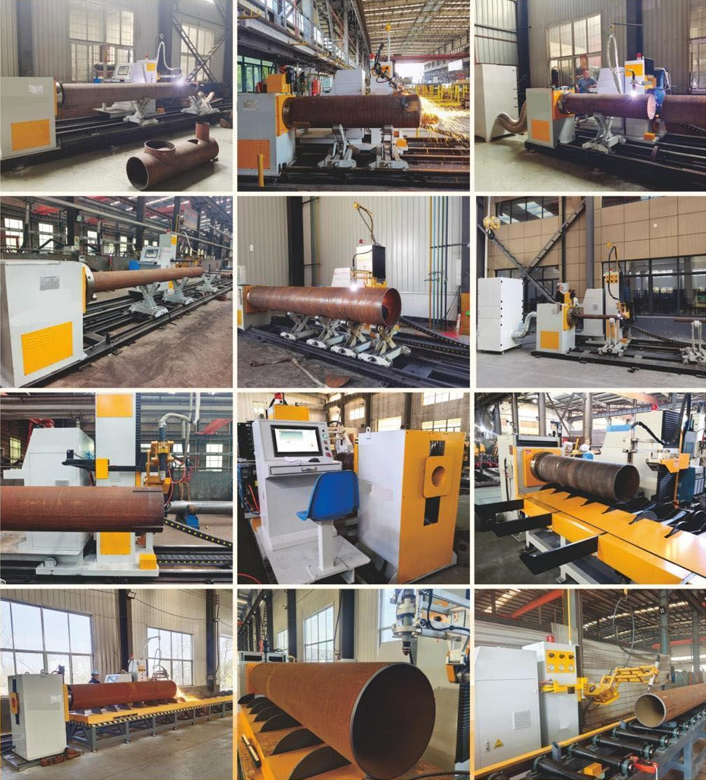

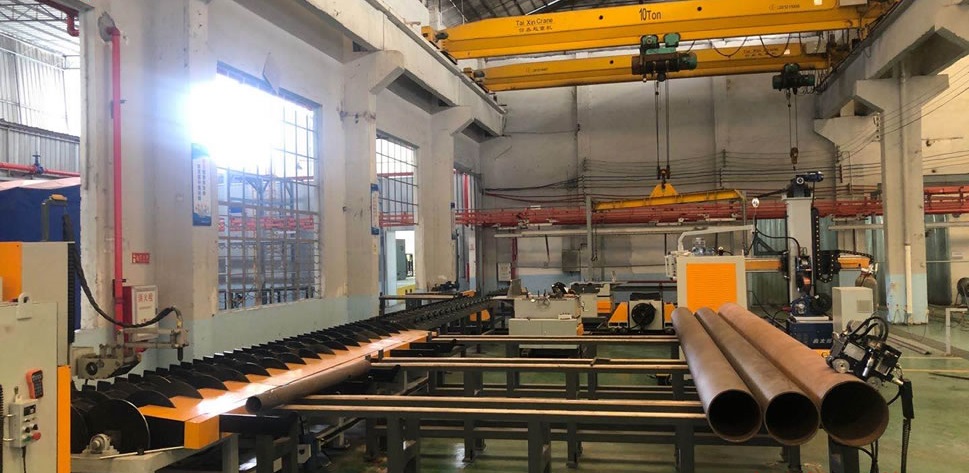

Optional features	□ 5.5KW intersecting line pulse filter cartridge dust collector □ Workpiece roundness copying tracking mechanism (sixth axis) □Chuck pneumatic clamping system □ Square pipe cutting chuck and control softwareProduction line configuration
