FMG Series
WINCOO
Walk through any busy pipe spool fabrication shop, and you will see it: skilled fitters wrestling with chain blocks, pry bars, and levels — spending 15 to 30 minutes per spool just to get two pipes and a flange aligned for the first tack weld. It is the step that determines everything downstream — weld quality, spool dimensional accuracy, and ultimately, your monthly Diameter-Inch throughput.
Now imagine that same step taking under 5 minutes. With one operator. And achieving ±0.5 mm alignment every single time.
That is what the Fast Fit-Up Machine delivers.

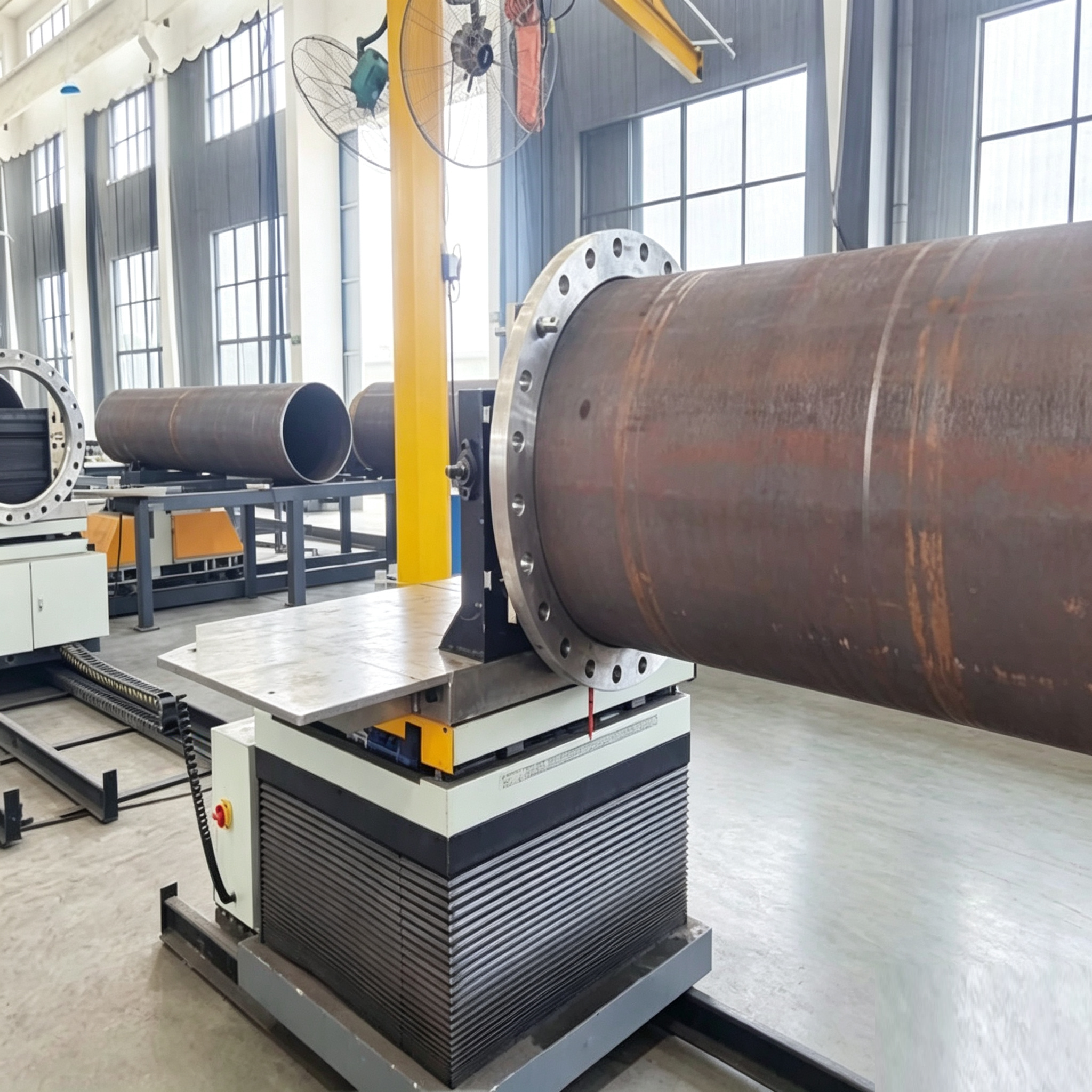

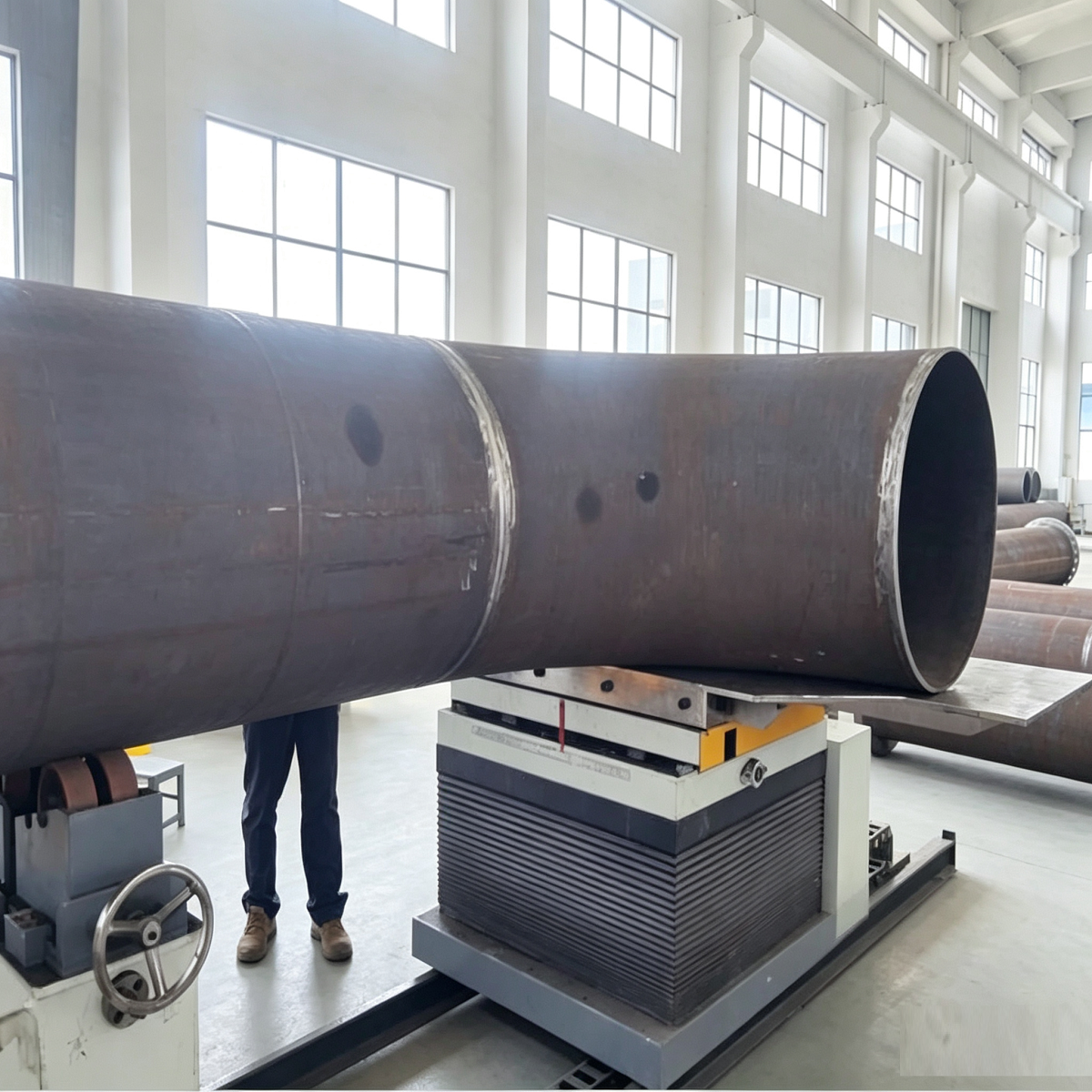

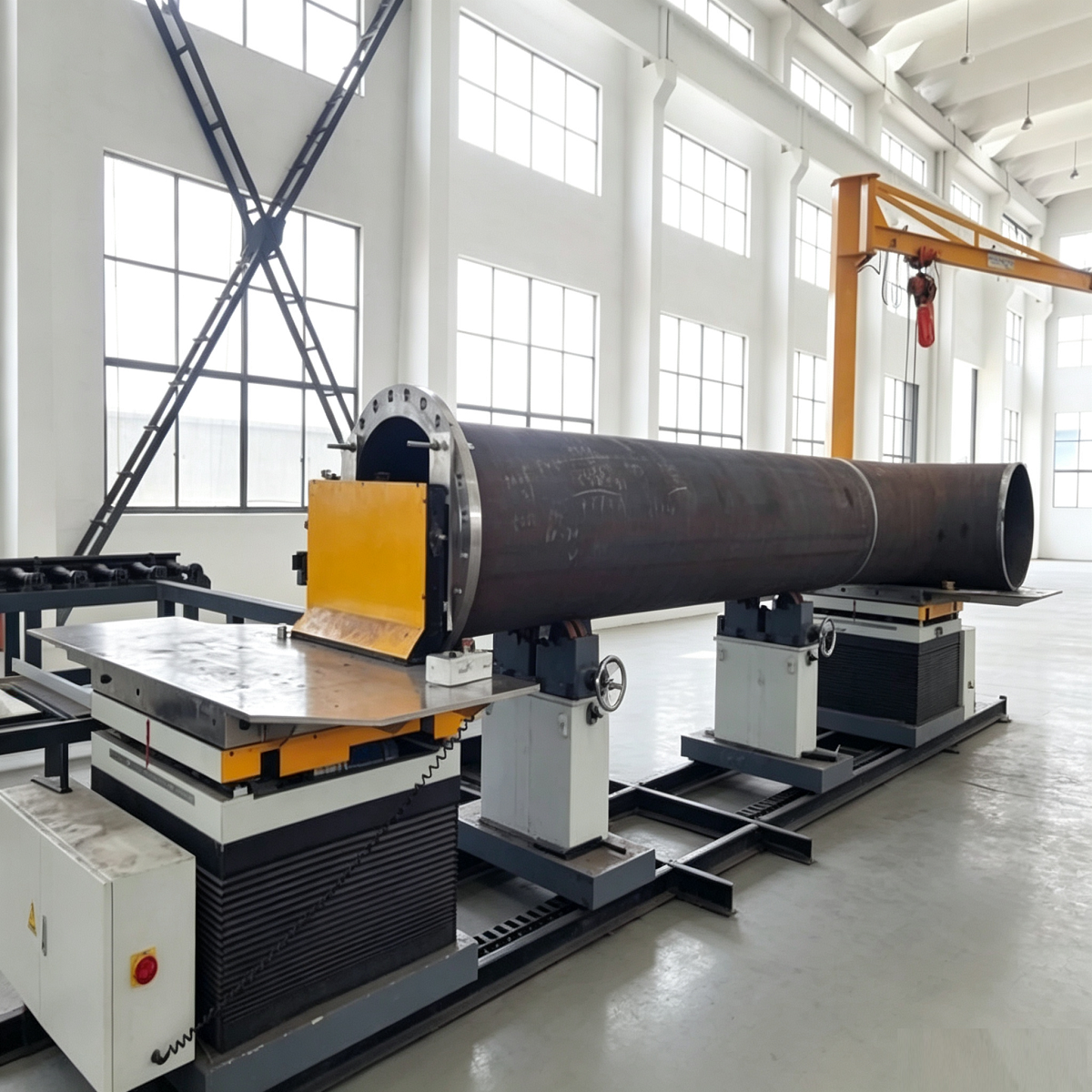

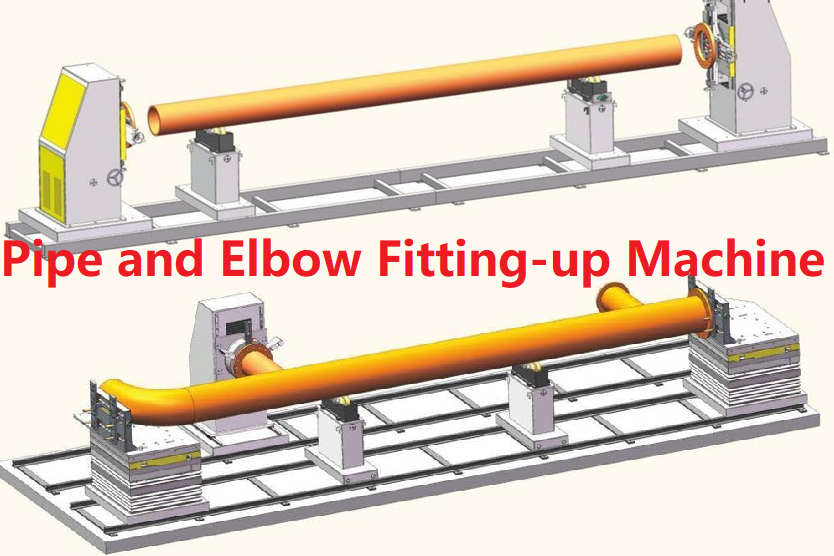

The Pipe Fast Fit-Up Machine is a motorized alignment and tack-weld workstation that sits at the heart of your pipeline prefabrication production line. It takes cut-and-beveled pipe segments and fittings (flanges, elbows, tees, reducers) and positions them with powered precision — replacing muscle, guesswork, and years of fitting experience with electric drives and a handheld control box.
In simple terms: you load the pipe and fittings onto the support trolleys, use the control box to bring both ends into perfect alignment, and tack-weld in place. The spool then moves smoothly to the automatic welding station — with no re-alignment needed.
Double the Throughput, Half the Labor

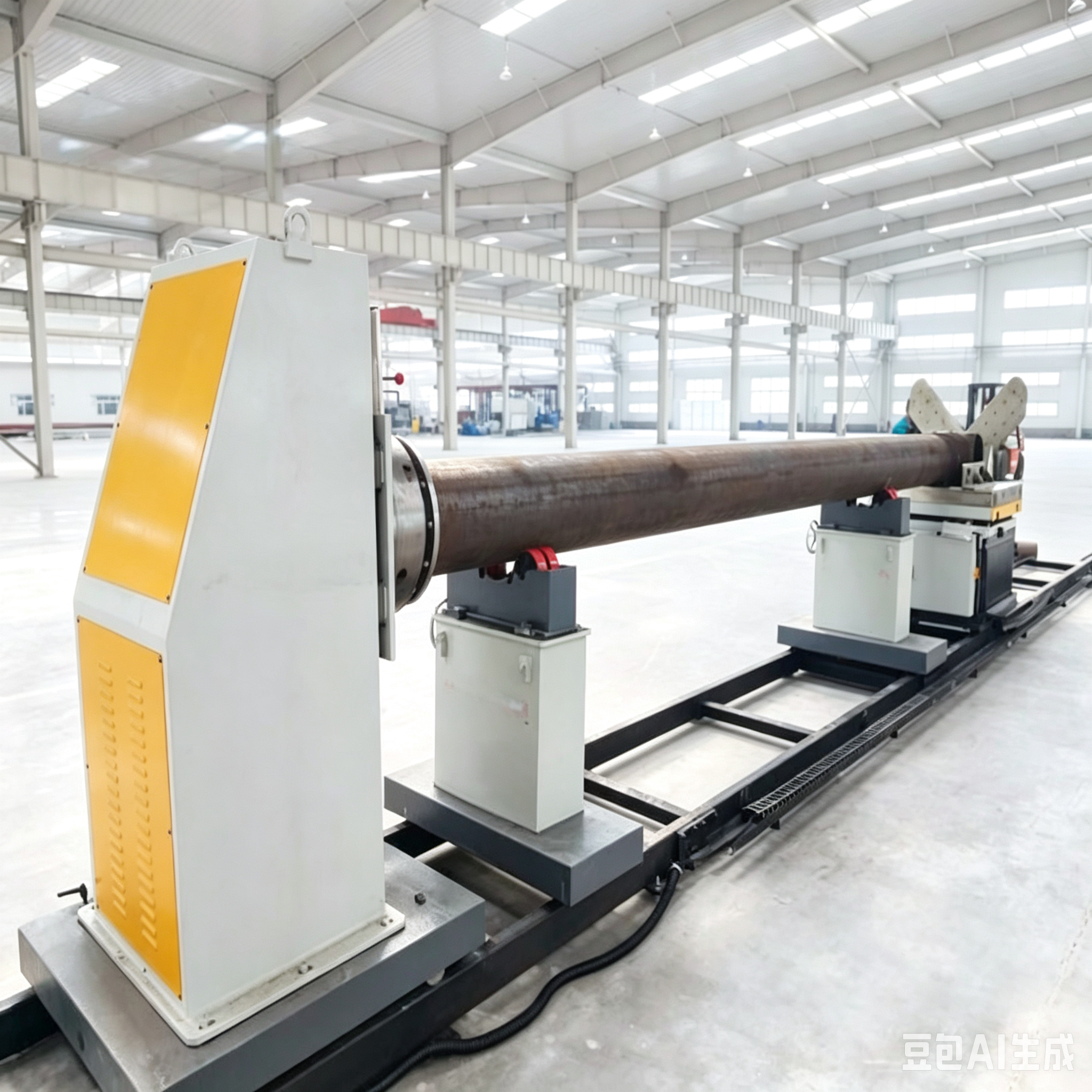

In dual-head configuration, both ends of the pipe spool are fitted simultaneously. Shops consistently report 80%–120% improvement in fit-up throughput over manual methods. One operator does the work that previously required two or three.
Welding Starts Clean, Ends Right
Misalignment at the fit-up stage is the #1 cause of root pass defects and dimensional rework. With motorized six-axis control (up/down, left/right, forward/back on each head), your root gap and alignment are dialed in — not eyeballed. This feeds directly into higher automatic welding first-pass yield and lower RT/UT failure rates.
Hiring Is Easier
Finding a pipe fitter with 10 years of experience is hard — and expensive. The Fast Fit-Up Machine reduces the skill threshold dramatically. Operators learn the handheld controls in hours, not years. Your existing workforce becomes more productive, and you can scale output without scaling headcount.
Safer, Cleaner Shop Floor
No more overhead chain blocks swinging heavy fittings. No more workers in awkward positions prying flanges into place. All positioning is powered and controlled remotely — reducing strain injuries and improving shop safety compliance.
The Fast Fit-Up Machine is not a standalone tool — it is a fully integrated module within a pipe spool prefabrication production line:
[Pipe Cutting & Beveling] → [Fast Fit-Up Machine] → [Root Pass Welding] → [Fill/Cap Welding] → [QC]It pairs seamlessly with:
PDSOFT 3Dpiping for spool geometry data import
PDSOFT SPFMS for production tracking and workflow management
Automated conveying systems for hands-free material flow between stations
Available in fixed-type and transportable-type configurations to match your shop layout.
Feature | Why It Matters |
|---|---|
Patented dual-head design | Synchronous fitting at both ends — no waiting, no re-sequencing |
6-axis electric drive per head | Precision positioning without hydraulics — cleaner, quieter, more reliable |
Handheld control box with jog mode | One operator runs the entire station; fine inching for final gap adjustment |

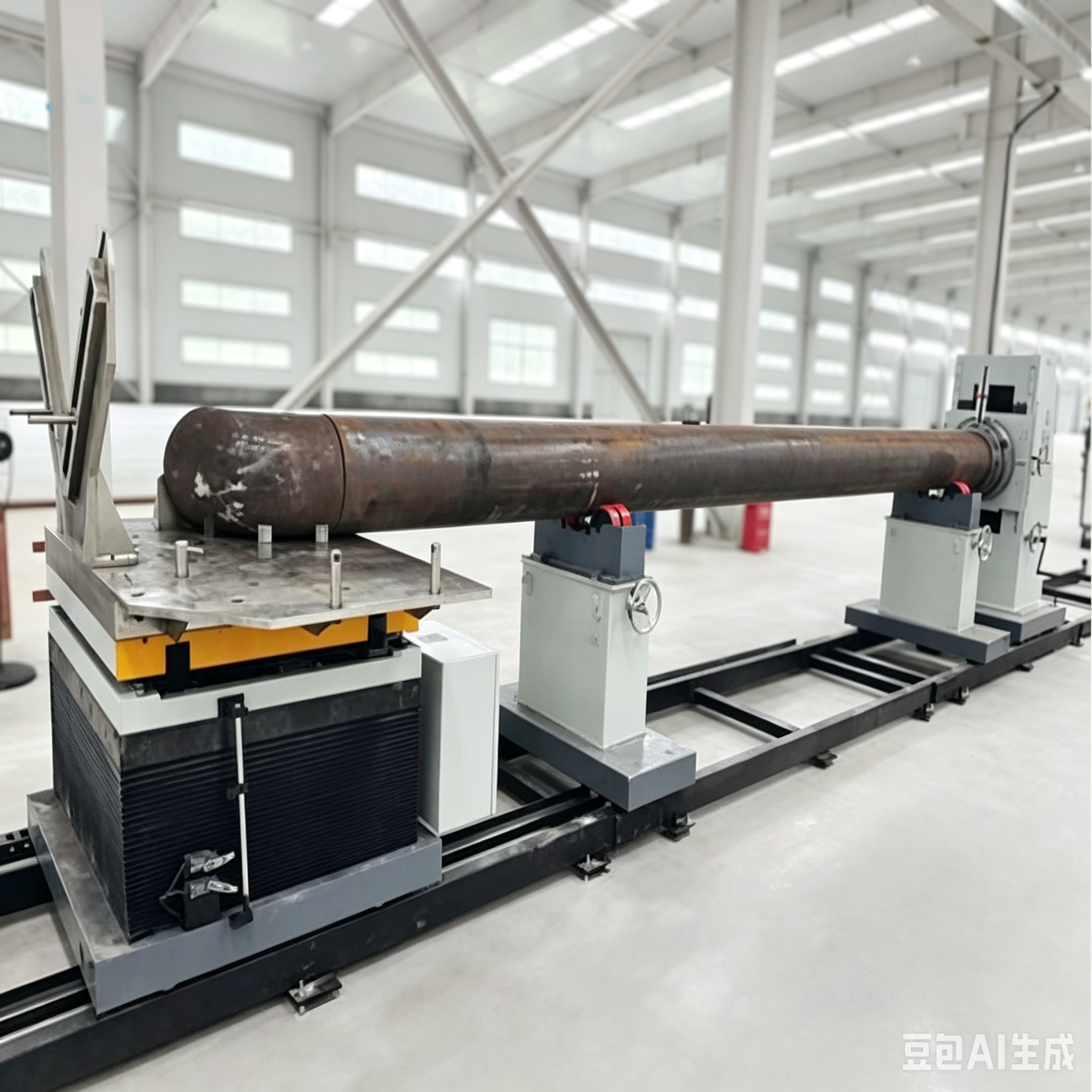

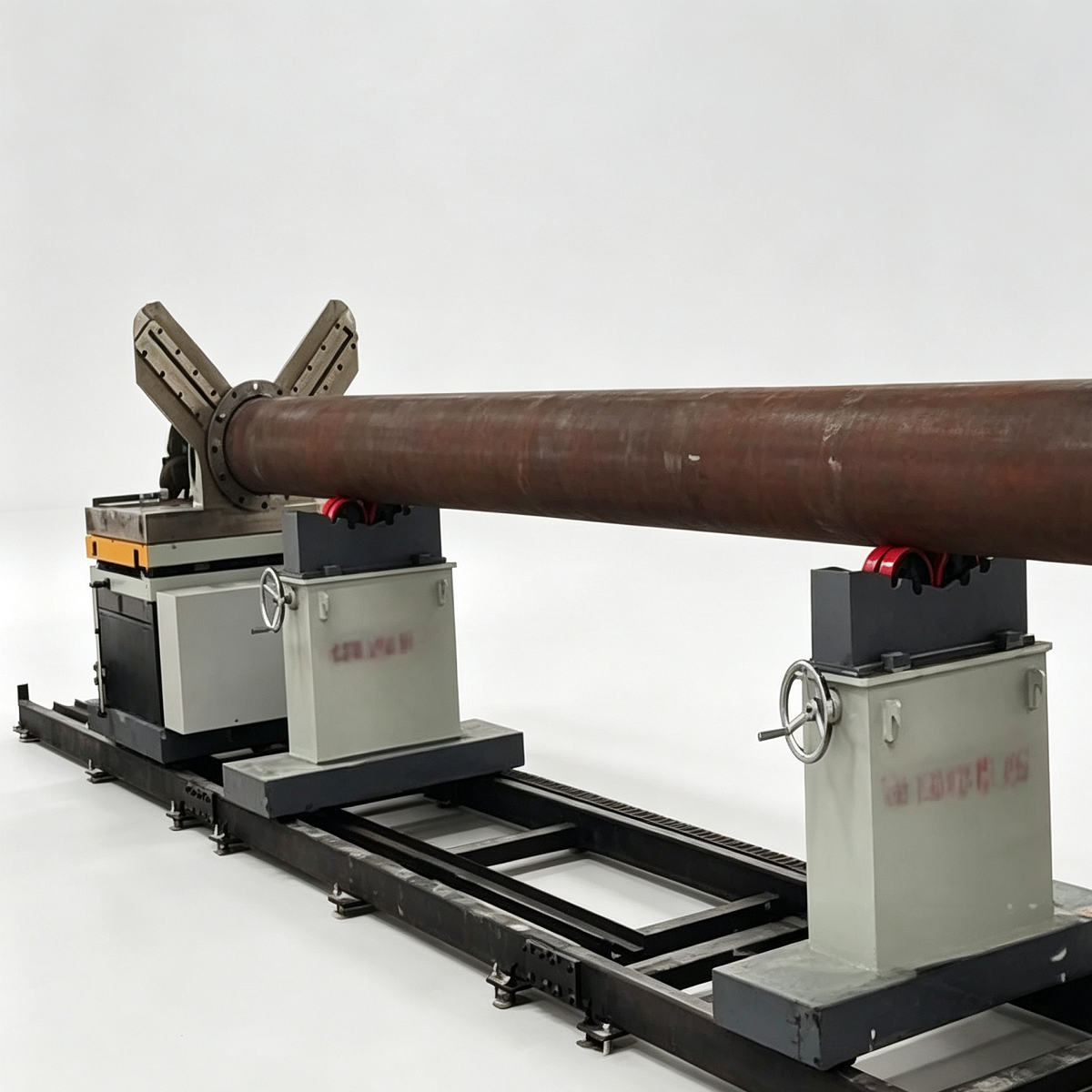

Double trolley support system | Pipes stay level and supported regardless of weight or length |
DN50–DN1600 range | One machine covers the full scope of most industrial spool shops |
Standard & heavy-wall capable | From SCH10 process piping to thick-wall power/boiler applications |
Pipe Range: DN50 – DN1600
Wall Thickness: Up to 80 mm
Max Pipe Length: 6 m (extendable)
Positioning Precision: ±0.5 mm
Fixturing: Electric screw lifter (vertical) + linear guide rail (lateral) + motorized track (longitudinal)
Load Capacity: 500–1,500 kg per fit-up head; 2,500 kg per support trolley
Control: Intuitive handheld jog control box
Oil & gas pipeline contractors and EPC firms
Petrochemical plant module fabricators
Power plant (thermal, nuclear, combined-cycle) piping shops
Shipyard pipe fabrication workshops
LNG terminal and cryogenic piping specialists
Industrial boiler and heat exchanger manufacturers
A pipe fabrication shop running a Fast Fit-Up Machine produces more Diameter-Inches per shift, with fewer workers, fewer defects, and faster turnaround — translating directly to higher margins and competitive bid wins.
Tell us your pipe diameter range, wall thickness schedule, and monthly throughput target. Our engineering team will configure a Fast Fit-Up Machine — and a complete prefabrication line — matched to your specific production requirements.
Engineered for precision. Built for throughput. Proven in shops worldwide.
