YT Series
WINCOO

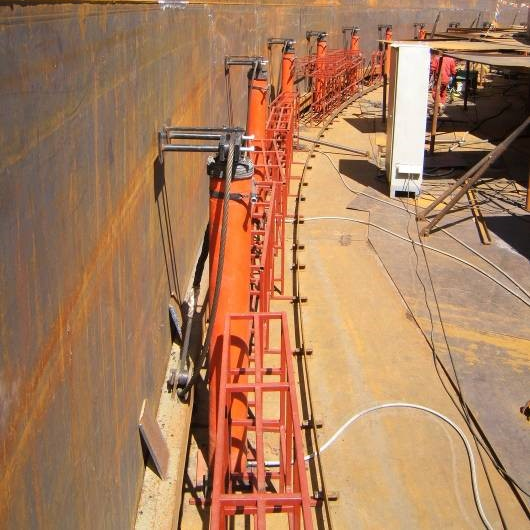

In the competitive world of storage tank fabrication, the ability to deliver projects faster and safer is your winning edge. WINCOO ENGINEERING CO.,LTD presents the YT Series Three-Stage Hydraulic Jacking System – a technological leap forward from traditional lifting methods, engineered to reduce costs, enhance weld quality, and accelerate your construction timeline.
Developed initially for China's national crude oil reserve projects in 1994 and continuously optimized over decades, the YT Series represents the pinnacle of hydraulic lifting technology. Whether you are building a 1,000m³ water tank or a 100,000m³ oil storage tank, the modular design of the YT Series scales to meet your needs.
1. The Power of Three-Stage Design
The three-stage telescopic cylinder provides an extended stroke without requiring a taller initial setup. This is crucial for inverted construction, where space is often confined. With strokes available from 1650mm up to 3400mm (YT40-3400 model), the YT Series can handle the tallest shell courses with ease.
2. Real-Time Synchronization
Our system features a real-time load balancing system. Using Siemens PLC modular design concepts, the control system monitors and adjusts each cylinder's position continuously. This eliminates the "racking" and distortion that can occur with unsynchronized lifts, ensuring the structural integrity of your tank.
Base Model: ±5mm accuracy.
Advanced/Pro Model: ±1mm accuracy for ultra-heavy structures.
3. Superior Pressure and Flow Ratings
With maximum service pressures ranging from 10 MPa to 30 MPa depending on the model, and oil pump flows up to 50L/min (YT12-2700), the system delivers rapid, powerful, and smooth lifting action. The YT30-3200, for example, operates at 30 MPa, providing robust force for demanding applications.
Problem: Complex installation and calibration of traditional jacks.
Solution: The YT Series features a "plug-and-play" modular configuration. The system includes a centralized operation control box and auxiliary control boxes that are compatible with any module, drastically reducing setup time.
Problem: Hydraulic oil leaks causing site hazards and cleanup costs.
Solution: The innovative single-hose design virtually eliminates leak points. The cylinders also retract using their own weight, simplifying the return cycle and reducing mechanical strain.
Problem: Difficulty integrating lifting with welding.
Solution: The YT Series is specifically designed to cooperate perfectly with WINCOO‘s tank welding machines. One horizontal seam welding machine can replace 6-10 skilled welders, while vertical seam machines can replace 20-30 welders. This synergy cuts manpower costs and accelerates project completion.
WINCOO offers a complete range of YT Series jacks to match any project scale. The table below highlights the diversity of our lineup:
| Model | Capacity | Max Stroke | Ideal Application |
|---|---|---|---|
| YT10-1650 | 10 t | 1700 mm | Small water tanks, precision internal work |
| YT18-1700 | 18 t | 1650 mm | Chemical storage tanks, medium loads |
| YT25-2700 | 25 t | 2700 mm | General oil storage, balance of speed and height |
| YT40-3400 | 40 t | 3400 mm | Large crude oil tanks, extra-high shell plates |
When you choose WINCOO, you gain a partner dedicated to your project's success:
Bid Support: We help you propose the most efficient construction method to win contracts.
Configuration: Our engineers calculate the precise number of jacks needed for your specific tank weight.
Global Supply: We act as your procurement agent in China, sourcing everything from consumables to special merchandise at competitive prices.
On-Site Training: We provide training and operation services to ensure your team maximizes the potential of the equipment.
The WINCOO YT Series Three-Stage Hydraulic Jack is more than just a lifting tool; it is a comprehensive productivity system for the modern tank yard. With its PLC precision, robust safety features, and seamless welding integration, it is the smart choice for contractors aiming to deliver quality projects on time and under budget.
Upgrade your construction method today. Contact WINCOO ENGINEERING CO.,LTD for a consultation.
