High efficiency And Simple Hydraulic Jacks for Tank Construction

Color:Black
Material:Stainless steel
Min order:1 set
Availability:
Quantity:
  • WINCOO

Simple Unfixing Holding -latch Hydraulic Jacking System

I.Product description

  Simple unfixing Holding -latch hydraulic Jack is a double acting hydraulic jack (also known as hydraulic lifting machine) with upper and lower clamping heads divided into two bodies. It is suitable for lifting construction of various large storage tanks (steel) or other heavy objects.It needs to cooperate with the lifting rod to achieve reciprocating lifting work.

II. Product Structure description

  The jack comprises an oil cylinder and a piston, the upper and lower ends of the oil cylinder are respectively provided with an upper cylinder head and a lower cylinder head, and the upper cylinder head and the lower cylinder head are respectively provided with an oil inlet and outlet hole;The piston is arranged in the middle of the piston rod, the both ends of the piston rod respectively extend out of the upper cylinder head and the lower cylinder head, the piston rod is hollow, and the lifting rod axial through the piston rod, the lifting rod on the upper side and the lower side of the piston rod are respectively provided with a locking device;The locking device comprises a gripping part set on the lifting rod, the gripping part is provided with a large and small conical hole, the inner side of the conical hole is circumferentially provided with a number of wedge blocks;The outer surface of the wedge block is compatible with the conical hole, the inner side of the wedge block is provided with a clamping tooth, the clamping tooth is held on the lifting rod, the wedge block is provided with a circular spring chuck;The spring chuck is provided with a plurality of round holes, a round hole is provided with a reset spring, the upper side of the spring chuck is provided with an annular cover fixed with the grip part, and the both ends of the reset spring are respectively conflicted between the lower end face of the wedge block and the cover;The grip part on the upper side of the locking device is relatively fixed with the upper end of the piston rod, and the grip part on the lower side of the locking device is relatively fixed with the lower cylinder head by the support.

III.Working principle

  Hydraulic lifting device (package unit) is evenly distributed around tank inner wall. Tank top and upper (the first layer) wall plates are lifted first and then install and weld wall plates of tank body. Self locking hydraulic jack and hydraulic hoist composing of lifting frame and lifting rod are adopted. When oil enters hydraulic jack, upper clamp fastens and lifts lifting rod and expansion ring and mobilize tank (including tank top) to ascend upward. When oil returns to jack, upper clamp returns with piston and lower clamp automatically fastens lifting rod without gliding. The jack repeats the movement and make lifting rod ascend with tank to designated height (spare height for next layer of plate). After butt weld of next layer of wall plates, open upper and lower loosening device and loosen upper and lower clamp to make lifting rod and expansion ring descend to lower expanded and welded rib plate of the next layer of wall plates and then lift. Repeat the process and ascend welded tan till the last layer of wall plates are installed and welded. The installation of the whole storage tank is completed.

IV.Product features

1,Simple jack adopts low relaxation steel strand, as long as there is a reasonable bearing lifting point, lifting height is not restricted;

2,Through the expansion and combination of simple jacks, the lifting weight, span and area are unlimited;

3,Small volume, light weight, large bearing capacity, convenient and flexible installation, especially suitable for small space or indoor large tonnage tank lifting;

4,The simple jack has reverse motion self-locking, which makes the lifting process very convenient, and the storage tank can be locked reliably at any position in the lifting process for a long time;

5,The jack has a high degree of automation, convenient and flexible operation, with automatic operation, semi-automatic operation, single point adjustment, manual operation and other operations.LCD display, touch screen display, button operation panel display, very intuitive.And the control system is equipped with self-correction protection procedures, even if the misoperation will not cause accidents;

6,Using this series of simple unfixing Holding -latch hydraulic Jack, the construction period is short, the cost is low, the economic benefit is good.

V.Product parameter

SQD-XXX-100S.F Hydraulic jack

Model

Rated lifting weight

Theory lifting weight

Rated oil pressure

Single hydraulic stroke

Lifting height

Glissade capacity

SQD-120-100S.F

120KN

123KN

18Mpa

100±0.5mm

2.6m

≤5mm

SQD-160-100S.F

160KN

163KN

20Mpa

100mm

2.6m

≤3mm

SQD-250-100S·F

250KN

253KN

25Mpa

100mm±1mm

2.6m

≤3mm

SQD-350-100S·F

300KN

303KN

20Mpa

100mm

2.6m

≤3mm

SQD-500-100S.F

500KN

503KN

25Mpa

100±0.5mm

2.6m

≤5mm

SQD-1000-200S·F

1000KN

1003KN

20Mpa

150mm

2.6m

≤3mm

Pump station

Model

Maximum pressure

Power

Rated oil flow

Motor rotate speed

oil tank capacity

System oil type

YB-40

25Mpa

11kw

40L/min

1470r/min

240L

L-HM46#   antiwear hydraulic oil

YB-60

25Mpa

18.5kw

60L/min

1470r/min

400L

YT-90

25Mpa

30kw

90L/min

1470r/min

400L

Jack support

Model

Total height

Lifting rod height

Slider stroke

Lifting rod diameter

Distance  between  expansion    loop  support  to    ground

TSJ-120-2600L

3460mm

3900mm

2630mm

φ32mm

310mm

TSJ-500-2950L

4040mm

4700mm

2950mm

φ60mm*4.7m

430mm

VI.Product photos

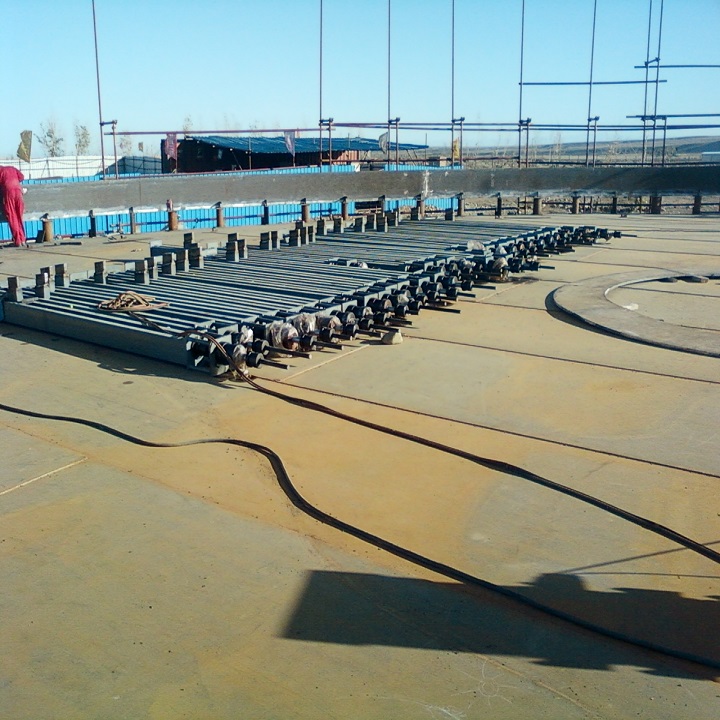

现场图片-2现场图片-3

VII.Company profile

  Wincoo Engineering Co., Ltd (WINCOO) is engaged in bringing the most suitable solutions/equipments for client, fabricators, EPC/C companies on pipe fabrication, tank construction, pipeline construction,industrial production lines, clean energy project and other industrial field.
  We have ability of providing workable solutions to support clients to be awarded with shorter project execution time, fewer man-hour cost and higher efficiency construction/fabrication method and better quality during phase of project bidding.Based client's facility/site space availability, we are able to study/design and present matched configurations on project schedule, quality, cost and productivity to guarantee production pace is accordance with project requirement.To support project execution, we are always ready to work as fireman to give prompt supply on project materials from different consumables, tools, equipments/machines to special merchandise. With flexibility, we are also glad to perform as procurement agent in China to seek required supply resources.

VIII.What we can bring for you?

1. Support you to win the project during bidding phase. We can provide your more suitable configurations to help you shorten the constrcution time.
2. We can provide all technical documents and advices to support you for construction procedure clearifications
3. We can calculate the most suitable number of hydraulic jack according to the weight of the tank
4. We can provide your suitable hydraulic jack accessories with much more competetive price from our long time business partner if you need.
5. We can provide site people training service, and operation service or manpower service or as a subcontractor
.
