Automatic Simple Hydraulic Jacking System for Tank Construction

1,Structure of simple jacking system

The jack comprises an oil cylinder and a piston, the upper and lower ends of the oil cylinder are respectively provided with an upper cylinder head and a lower cylinder head, and the upper cylinder head and the lower cylinder head are respectively provided with an oil inlet and outlet hole;The piston is arranged in the middle of the piston rod, the both ends of the piston rod respectively extend out of the upper cylinder head and the lower cylinder head, the piston rod is hollow, and the lifting rod axial through the piston rod, the lifting rod on the upper side and the lower side of the piston rod are respectively provided with a locking device;The locking device comprises a gripping part set on the lifting rod, the gripping part is provided with a large and small conical hole, the inner side of the conical hole is circumferentially provided with a number of wedge blocks;The outer surface of the wedge block is compatible with the conical hole, the inner side of the wedge block is provided with a clamping tooth, the clamping tooth is held on the lifting rod, the wedge block is provided with a circular spring chuck;The spring chuck is provided with a plurality of round holes, a round hole is provided with a reset spring, the upper side of the spring chuck is provided with an annular cover fixed with the grip part, and the both ends of the reset spring are respectively conflicted between the lower end face of the wedge block and the cover;The grip part on the upper side of the locking device is relatively fixed with the upper end of the piston rod, and the grip part on the lower side of the locking device is relatively fixed with the lower cylinder head by the support.

2,Working principle

Hydraulic lifting device (package unit) is evenly distributed around tank inner wall. Tank top and upper (the first layer) wall plates are lifted first and then install and weld wall plates of tank body. Self locking hydraulic jack and hydraulic hoist composing of lifting frame and lifting rod are adopted. When oil enters hydraulic jack, upper clamp fastens and lifts lifting rod and expansion ring and mobilize tank (including tank top) to ascend upward. When oil returns to jack, upper clamp returns with piston and lower clamp automatically fastens lifting rod without gliding. The jack repeats the movement and make lifting rod ascend with tank to designated height (spare height for next layer of plate). After butt weld of next layer of wall plates, open upper and lower loosening device and loosen upper and lower clamp to make lifting rod and expansion ring descend to lower expanded and welded rib plate of the next layer of wall plates and then lift. Repeat the process and ascend welded tan till the last layer of wall plates are installed and welded. The installation of the whole storage tank is completed.

3,Technical parameter

SQD-XXX-100S.F Hydraulic jack

Pump station

Jack support

4,Product features

1).Simple jack adopts low relaxation steel strand, as long as there is a reasonable bearing lifting point, lifting height is not restricted;

2).Through the expansion and combination of simple jacks, the lifting weight, span and area are unlimited;

3).Small volume, light weight, large bearing capacity, convenient and flexible installation, especially suitable for small space or indoor large tonnage tank lifting;

4).The simple jack has reverse motion self-locking, which makes the lifting process very convenient, and the storage tank can be locked reliably at any position in the lifting process for a long time;

5).The jack has a high degree of automation, convenient and flexible operation, with automatic operation, semi-automatic operation, single point adjustment, manual operation and other operations.LCD display, touch screen display, button operation panel display, very intuitive.And the control system is equipped with self-correction protection procedures, even if the misoperation will not cause accidents;

6).Using this series of simple unfixing Holding -latch hydraulic Jack, the construction period is short, the cost is low, the economic benefit is good.

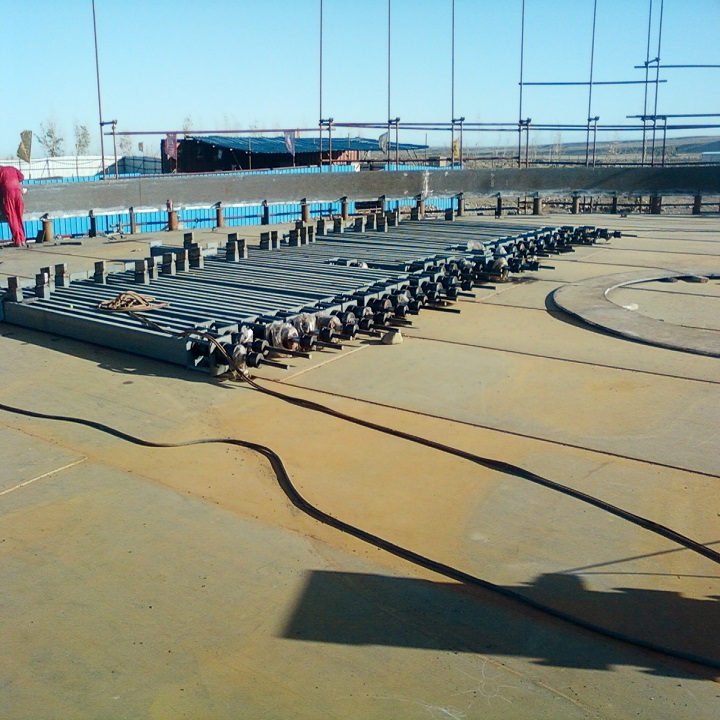

5,Construction site photos
