PCBSM-16Aa / 24Aa / 32Aa / 40Aa / 48Aa / 60Aa
WINCOO
Product Introduction

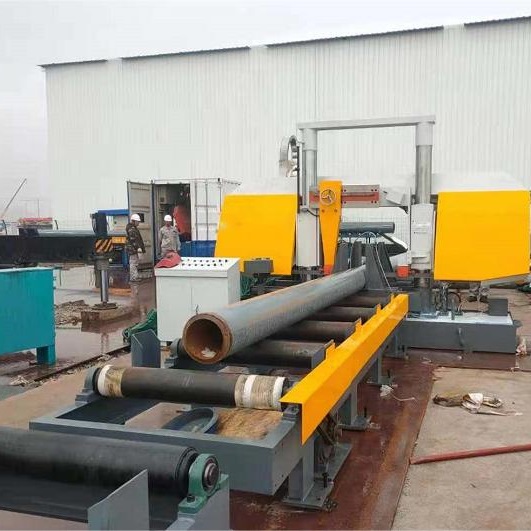

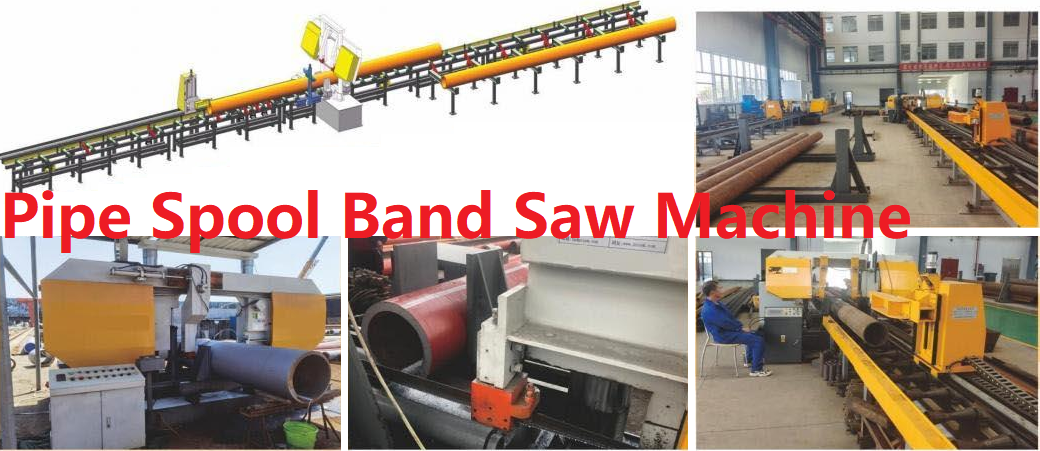

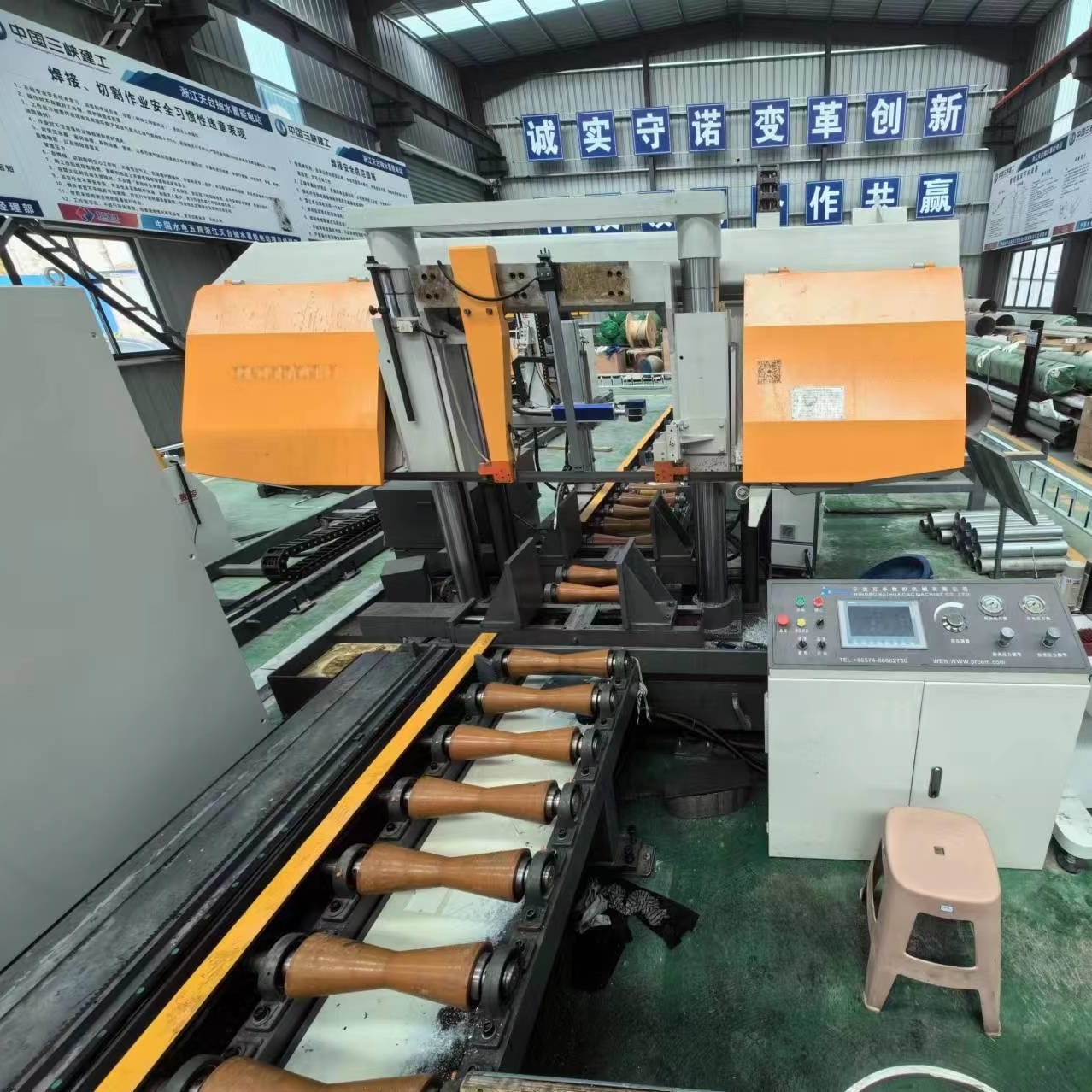

WINCOO ENGINEERING CO.,LTD offers a comprehensive range of Industrial Double Column Pipe Band Saw Cutting Machines, engineered for heavy-duty pipe fabrication in demanding industrial environments. With decades of expertise in energy infrastructure solutions, WINCOO delivers end-to-end supply chain integration across critical domains including pipe fabrication, tank construction, and pipeline construction. The company excels in providing professional service and competitive pricing, with all electric band-sawing machines having passed international industry certification standards. WINCOO's band saws feature characteristic design and practical performance, making them the preferred choice for fabricators and EPC companies worldwide.
Technical Specifications
Parameter | Specification |
|---|---|
Model Series | PCBSM-16A / 24A / 32A / 48 |
Type | Horizontal double column band sawing machine |
Control Mode | CNC automatic control |
Pipe Diameter Range | DN50-400 (φ60-426mm) to DN400-1200 (φ426-1219mm) |
Applicable Materials | Carbon steel, alloy steel, stainless steel, cryogenic steel |
Cutting Efficiency | ≤2 min per pipe cut (DN200 Sch40) |
Band Saw Speed | 17-85 m/min (stepless speed adjustment) |
Band Saw Size | 4570×34×1.1mm to 10800×67×1.6mm |
Clamping Mode | Both sides centering clamping automatically by hydraulic cylinder |
Feeding Speed | Stepless speed adjustment |
Certification | CE Certified / International industry standards- |
Key Advantages

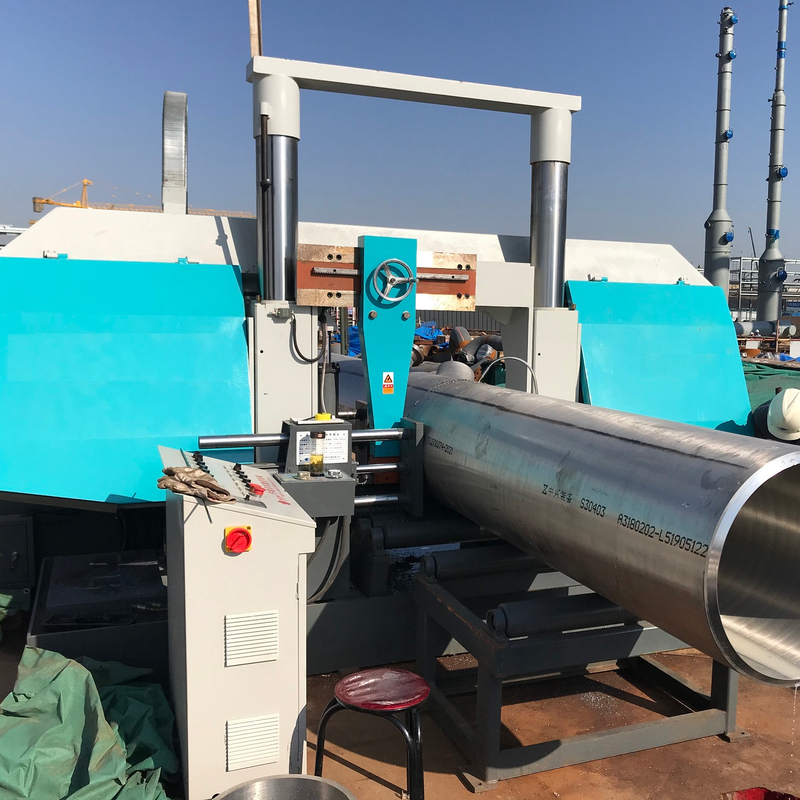

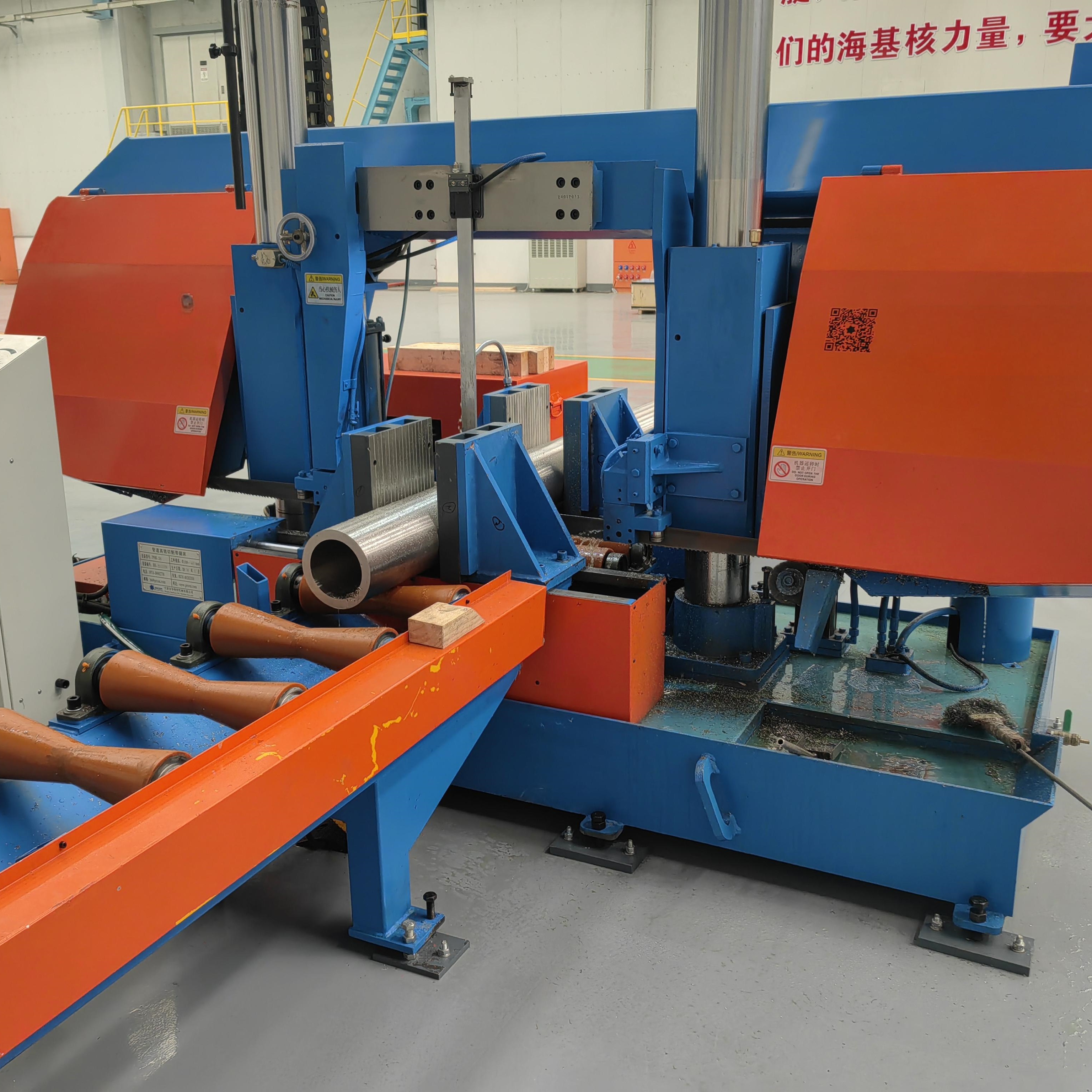

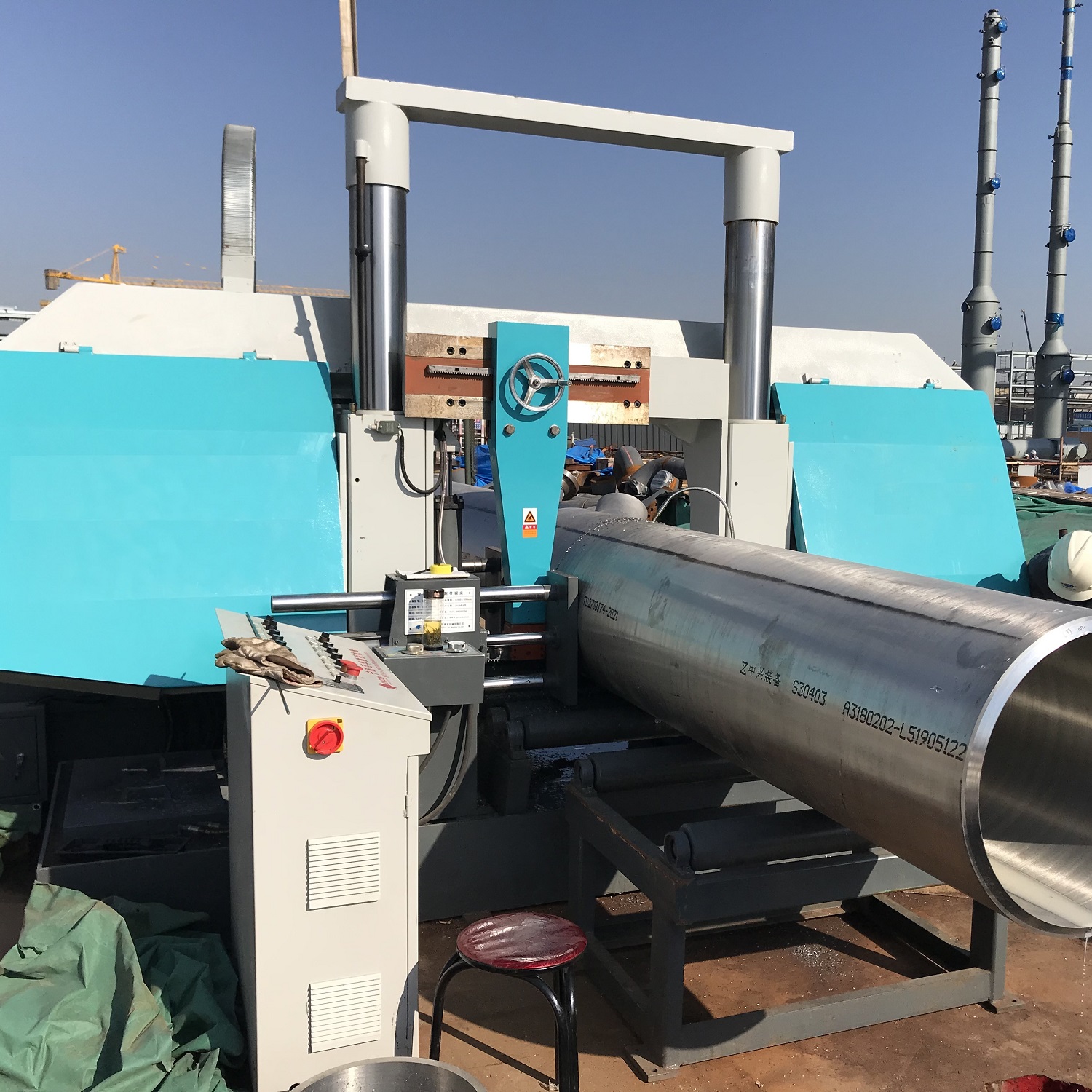

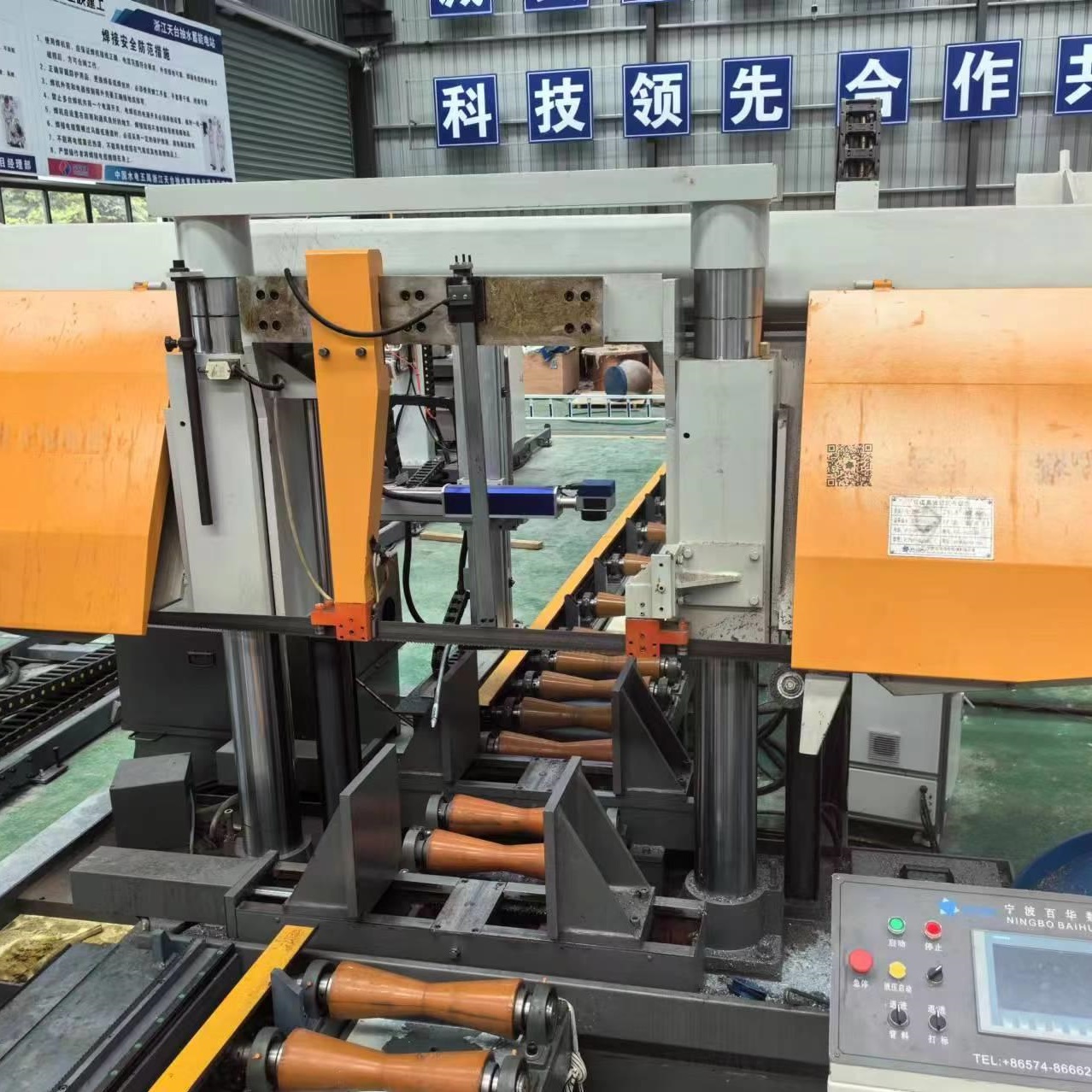

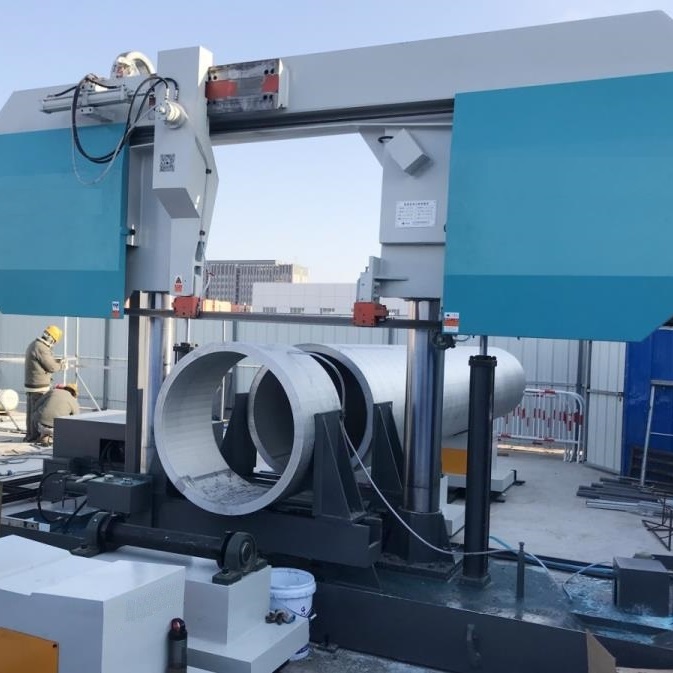

Robust Double Column Structure: The horizontal double column design ensures excellent stability and precision during cutting operations, reducing vibration and extending blade life.
Exceptional Heavy-Wall Cutting Performance: Specifically engineered for heavy wall thickness pipes, including challenging materials such as stainless steel, duplex stainless steel, and alloy steel pipes.
Automatic Hydraulic Tensioning System: Band saw tensioning and loosening are fully automated via hydraulic cylinder, ensuring optimal blade tension for consistent cutting quality.
Built-in Cooling System: Integrated coolant pump effectively dissipates heat during cutting operations, prolonging blade life and maintaining cutting precision.
High Production Capacity: With a production capacity of 360 sets per year, WINCOO ensures reliable supply for large-scale projects.
Multi-Material Compatibility: Capable of cutting carbon steel, alloy steel, stainless steel, and cryogenic steel, providing versatility across diverse project requirements.
Superior Cutting Quality: Delivers excellent opening quality with no length tolerance,不受 pipe material constraints.
Competitive Pricing & Professional Service: WINCOO provides professional service and competitive pricing, ensuring excellent value for investment.
Application Fields
1, Heavy Industry Pipe Fabrication: Ideal for pipe spool fabrication in heavy industrial settings.
2, Oil & Gas Pipeline Projects: Widely used in oil and gas pipeline construction, including long-distance pipeline installations.
3, Petrochemical & Refining: Suitable for gas plant piping systems and petrochemical facilities.
4, Power & Energy Sector: Applied in power generation plants and clean energy infrastructure projects.
5, Tank Construction: Used in storage tank construction and sphere tank projects.
6, EPC Project Execution: Trusted by EPC companies for comprehensive pipe fabrication solutions.
7, Modular Manufacturing: Supports advanced modular manufacturing with just-in-time logistics for accelerated project deployment.
