SDT-1500
WINCOO
Product Overview
WINCOO Engineering Co., Ltd., a leading hydraulic machinery manufacturer integrating design, development, production and sales, proudly presents its specialized hydraulic jacking systems for grain silo and enamel storage tank inverted installation construction. As the founder and disseminator of hydraulic hoist technology, WINCOO has been building inverted hydraulic lifting equipment and production technology for installation engineering for decades. Headquartered in Nanjing, China, WINCOO combines engineering expertise with internationally recognized certifications including CE, ISO 9001:2000, and ISO 9001:2008.

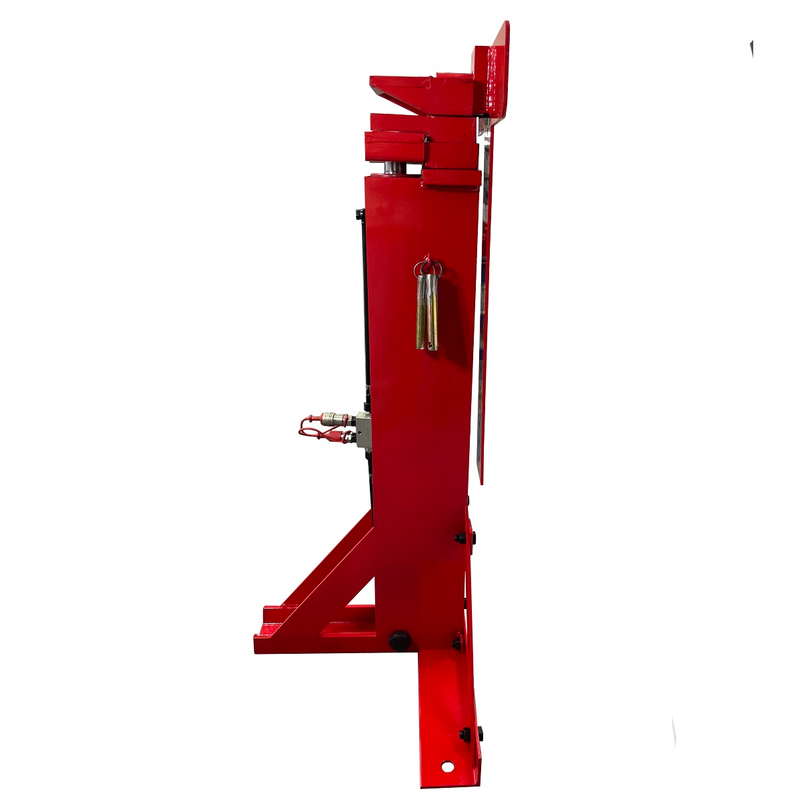

Our hydraulic jacking system is suitable for all kinds of large storage tanks (steel), flat bottom corrugated board granaries, and enamel tank inverted installation construction. The system is mainly composed of a hydraulic jacking pump station, hydraulic cylinders, and rectangular steel frames, enabling easy on-site installation and operation.
Technical Specifications
Parameter | Specification |
|---|---|
Rated Lifting Weight | 50 KN (approx. 5 tons) |
System Pressure | 16 MPa |
Hydraulic Travel Stroke | 0.8 m (800 mm) |
Lifting Height | 2.3 m (2,300 mm) |
Hydraulic Operating Mode | Double-acting |
Lifting Mode | Rectangular steel frame |
Lock Mode | Hydraulic lock + Pin lock (dual safety) |
Size (Hydraulic Cylinder) | 800 × 620 × 1180 mm |
Weight (Hydraulic Cylinder) | 60 kg |
Basic Height of Hydraulic Jacks | 1180 mm |
Max Working Pressure | 16 MPa |
System Voltage | 380 V |
System Flow | 38 L/min |
Individual Max Displacement | 5 L/min |
Tank Capacity | 300 L |
Motor Speed | 1470 r/min |
Control Voltage | DC 220 V |
System Temperature | 20–60 °C |
Overall Size (Pump Station) | 2500 × 2000 × 1500 mm |
Key Features & Advantages
1, PLC-Controlled Synchronized Lifting – The equipment adopts PLC program to control jacking, offering simple operation, high synchronization precision, and a stable jacking process. Multiple hydraulic cylinders operate in unison, achieving millimeter-level precision and eliminating uneven stress distribution during tank assembly.
2, Dual Control Modes – The hydraulic jacking pump station supports both manual and centralized control modes. Hydraulic cylinders can be adjusted individually or in groups for fine-tuning lifts and falls. Multiple groups can be centrally controlled for coordinated up/down operations, enabling precise butt adjustment of tank wall welds.
3, Self-Locking Safety Mechanism – Each hydraulic cylinder is equipped with a safety valve self-locking system. Even in the event of power failure, high-pressure hose rupture, or hydraulic cylinder malfunction, the equipment will not cause the tank or heavy objects to slide or fall, ensuring safe and reliable hydraulic jacking operation.
4, Plunger-Type Hydraulic System – The plunger-type hydraulic jacking system generates no side force during the jacking process, meaning zero influence on the tank wall integrity.
5, Compact & Lightweight Design – Featuring a sleeve process design, the system offers a smaller shape, lighter weight, and easier installation and transportation, resulting in higher application efficiency.
6, High Stroke Efficiency – With a hydraulic cylinder stroke of 800 mm, the system can complete the one-time jacking of wall panels below 2300 mm, reducing jacking time and saving labor costs.
7, Corrosion-Resistant Construction – Built with robust steel construction to withstand harsh agricultural and outdoor environments.
Applications
Inverted installation construction of grain silos
Enamel storage tank erection and maintenance
Flat bottom corrugated board granary assembly
Large steel storage tank lifting and repositioning
Foundation repair, leveling, and relocation of storage structures
Certifications
WINCOO products are certified by SGS, BV, and CE, with ISO 9001:2000 and ISO 9001:2008 quality management systems in place, reflecting our commitment to international quality and safety standards.
