WINCOO Grain Silo & Enamel Tank Hydraulic Jacking System – Elevating Your Storage Construction Efficiency

Introduction

In the demanding field of grain storage and enamel tank construction, precision, safety, and efficiency are non-negotiable. WINCOO Engineering Co., Ltd. delivers state-of-the-art hydraulic lifting systems designed specifically for the inverted installation construction of grain silos and enamel tanks.

WINCOO is recognized as the founder and disseminator of hydraulic hoist technology, with decades of experience in building inverted hydraulic lifting equipment and production technology. Our hydraulic jacking systems are engineered to handle heavy-load operations with exceptional reliability, serving clients across agricultural storage, industrial tank construction, and petrochemical sectors.

Technical Parameters

Why Choose WINCOO Hydraulic Jacking System?

High Payload Capacity – Engineered to handle lifting capacities from 1 ton up to 50 tons, our systems ensure robust performance for large-scale grain bin and enamel tank projects.

Synchronized Lifting Technology – Equipped with PLC-controlled synchronization, multiple hydraulic cylinders operate in unison with millimeter-level precision. This eliminates uneven stress distribution, which is critical for maintaining structural integrity during tank and silo assembly.

Safety Redundancy – Integrated safety valves and hydraulic/pin-lock dual mechanisms automatically lock the system in emergencies—such as power outages or hose ruptures—preventing catastrophic drops and ensuring operator safety.

Modular & Scalable Design – Scalable configurations allow adjustments based on tank size and weight, making the system adaptable to projects ranging from compact storage units to massive industrial tanks.

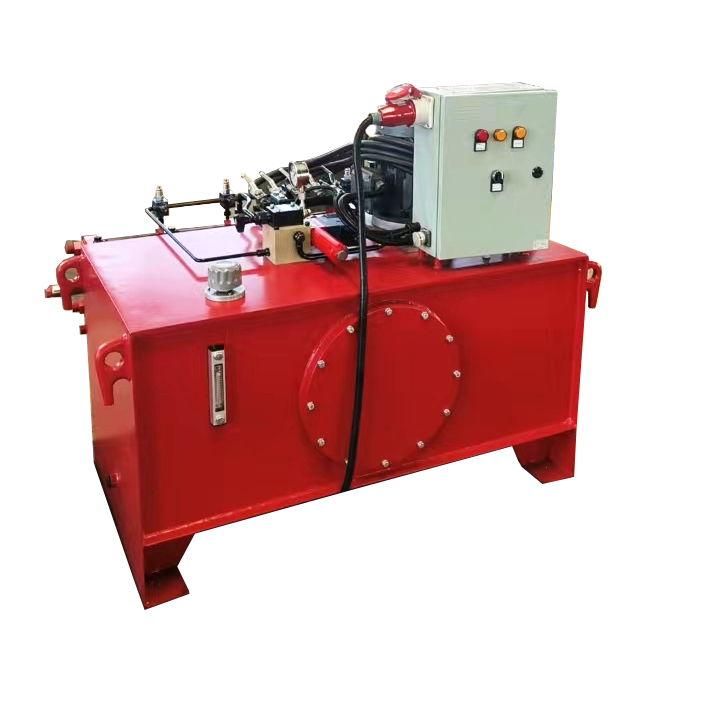

Energy Efficiency – With a maximum pressure of 25 MPa and optimized hydraulic oil circulation, WINCOO‘s systems reduce energy consumption while maintaining high duty cycles.

Adjustable Lifting Height – Fine-tuning capability allows precise butt-alignment of tank wall plates for superior welding quality.

Dual Control Flexibility – Supports automatic, semi-automatic, single-point adjustment, and manual control modes for maximum operational flexibility.

Typical Applications

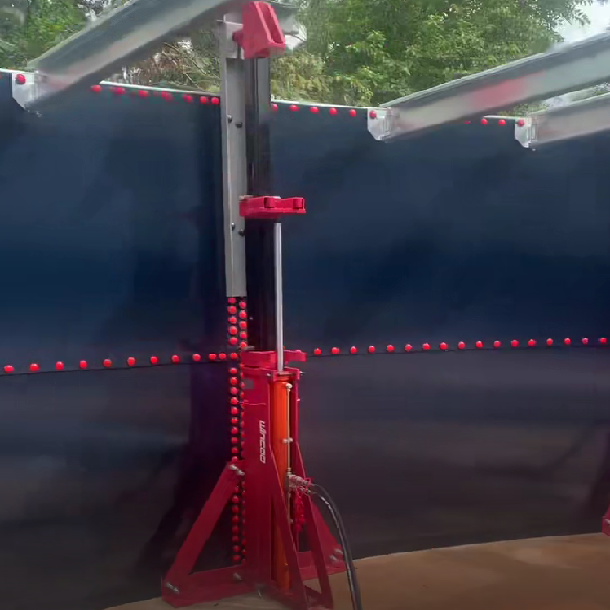

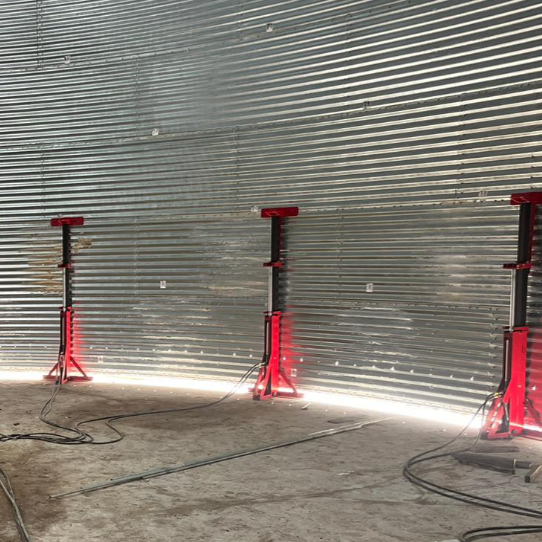

Vertical inverted installation of grain silos

Enamel tank assembly and maintenance

Grain bin foundation repair and leveling

Tank relocation and repositioning

Integration with automated welding systems to reduce labor costs

Heavy-load positioning in construction and agricultural projects

Case Study Insight

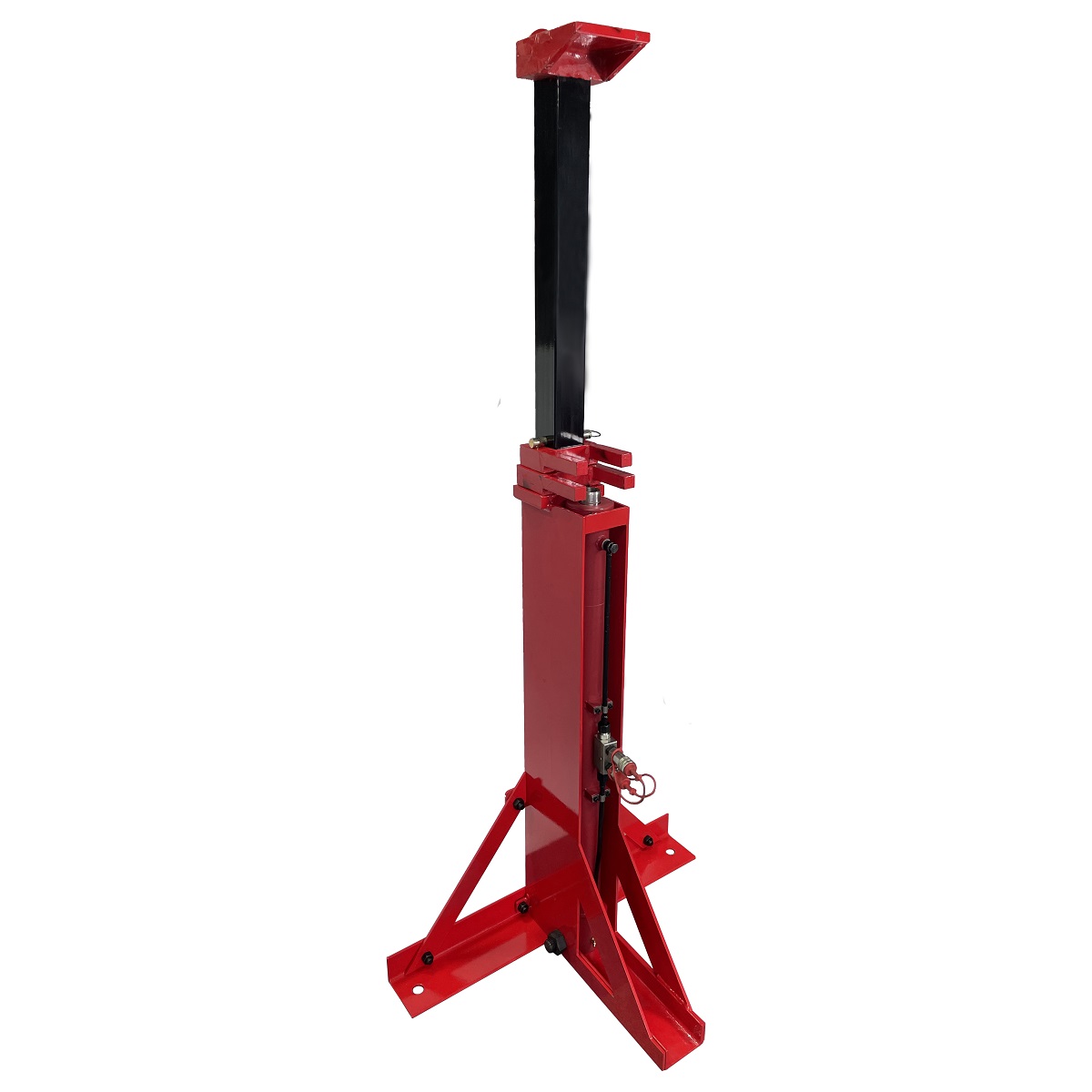

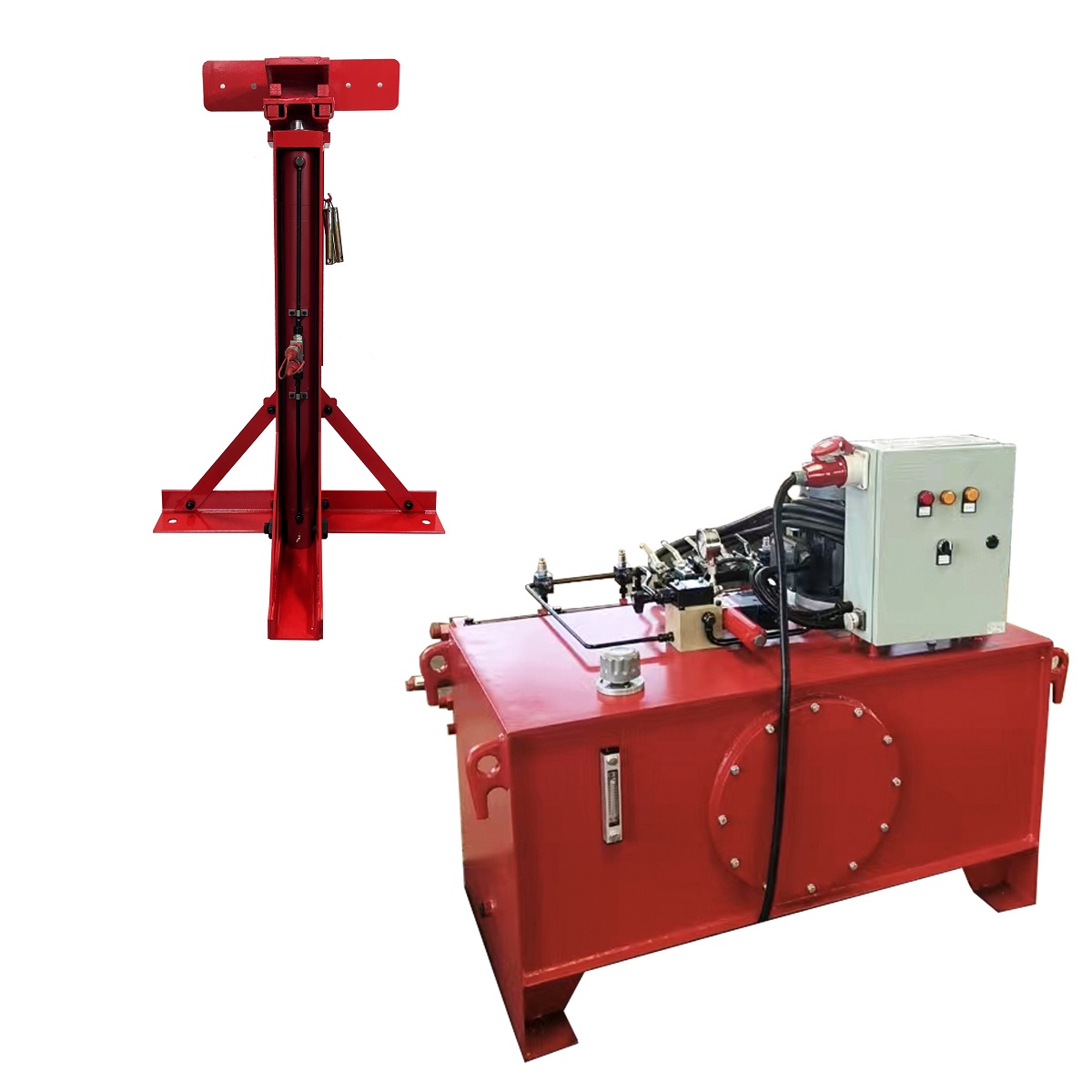

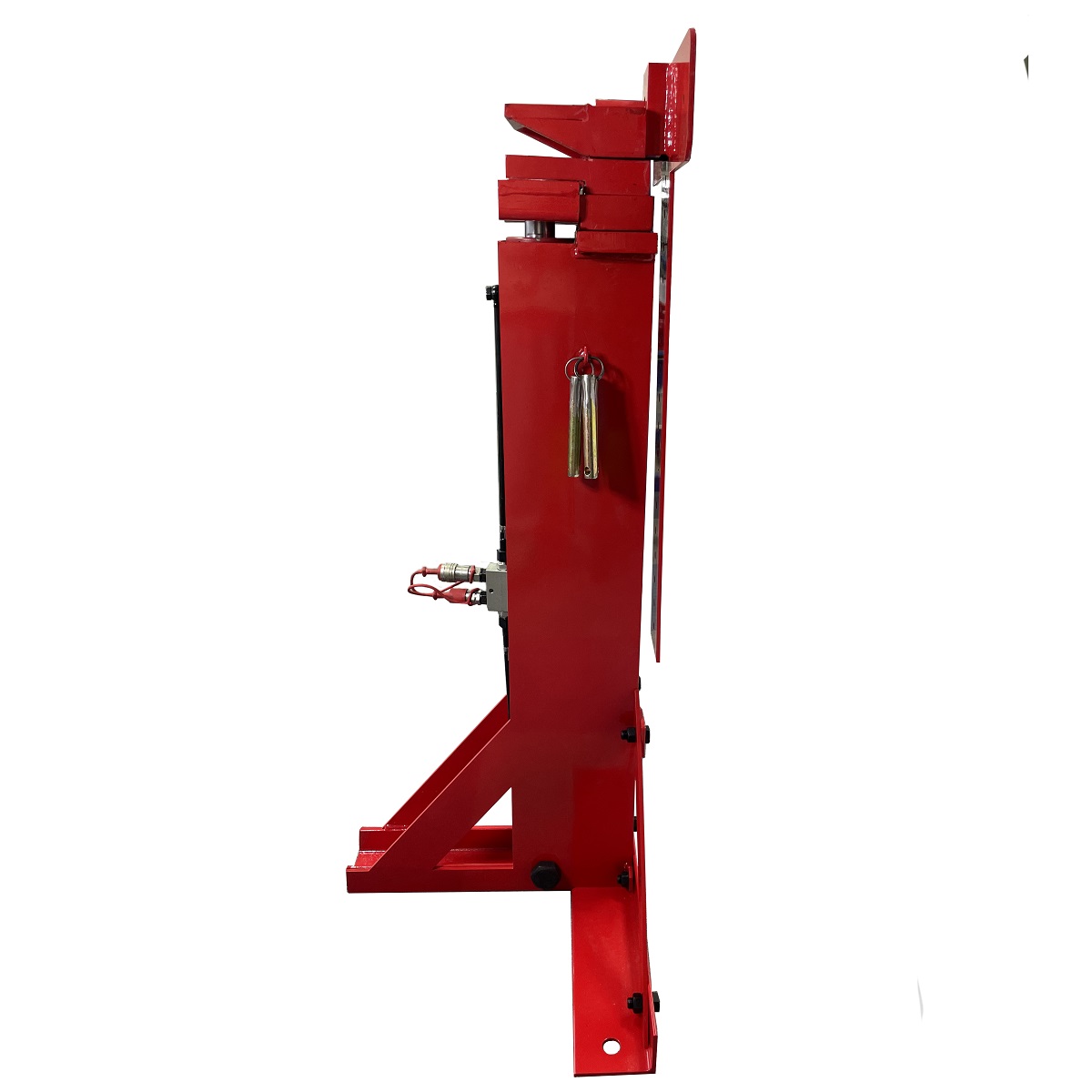

When used with a proportional split-flow pump, multiple WINCOO hydraulic jacks can operate simultaneously at the same speed, ensuring a perfectly level and safe lift. The integrated mechanical safety ring nut automatically locks in position to prevent accidental lowering in case of hydraulic pressure loss. The compact design—with low starting height and manageable weight—allows for easy placement and setup in confined spaces around the bin base.

Our Commitment

WINCOO Engineering Co., Ltd. is committed to bringing the most suitable solutions and equipment for clients, fabricators, and EPC/C companies in tank construction, pipe fabrication, industrial production lines, and clean energy projects. With over a decade of experience, we continue to optimize our equipment and improve production processes to ensure product quality and performance meet the highest standards.

Contact Us

Ready to elevate your grain silo and enamel tank construction projects? Contact WINCOO today for customized solutions and competitive pricing.

WINCOO Engineering Co., Ltd.

Jiangsu, China

Jacky Nie (Mr.) – General Manager / Sales

+86-15358182650

OEM and ODM services available. CE certified. ISO 9001:2000 compliant.
