PCBSM-16Aa / 24Aa / 32Aa / 40Aa / 48Aa / 60Aa
WINCOO

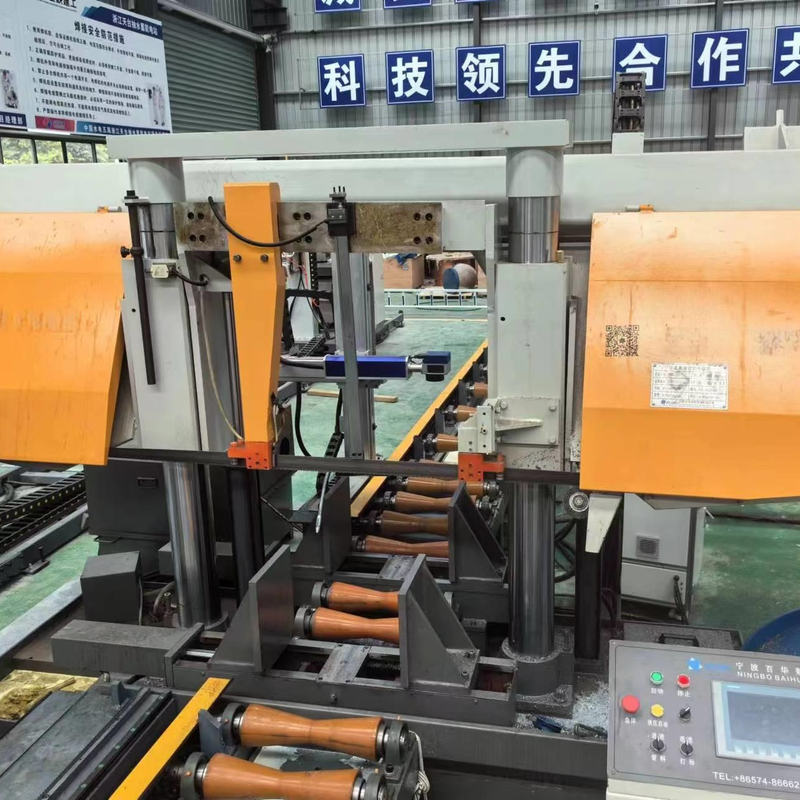

WINCOO ENGINEERING CO.,LTD presents its High Efficiency Pipe Band Saw Cutting Machine, a precision-engineered solution designed specifically for pipe spool fabrication and pipeline construction. As a professional manufacturer of automatic band saw machines, WINCOO delivers equipment that combines characteristic design with practical performance and competitive pricing. This band saw machine is designed as a one-line equipment for production line integration, ensuring seamless workflow in pipe prefabrication facilities. All products have passed international industry certification standards, guaranteeing quality and reliability.
Technical Specifications
Parameter | Specification |
|---|---|
Model Series | PCBSM-16Aa / 24Aa / 32Aa / 40Aa / 48Aa / 60Aa |
Type | Horizontal double column band sawing machine |
Control Mode | CNC / PLC automatic control |
Pipe Diameter Range | DN50-400 (φ60-426mm) to DN800-1500 (φ813-1524mm), customizable |
Applicable Materials | Carbon steel, alloy steel, stainless steel, cryogenic steel |
Cutting Efficiency | ≤2 min per pipe cut (DN200 Sch40) |
Band Saw Speed | 15-80 m/min (stepless speed adjustment) |
Band Saw Size | 4320×34×1.1mm to 15090×80×1.6mm |
Clamping Mode | Both sides centering clamping automatically by hydraulic cylinder |
Band Saw Tension | Automatic tensioning and loosening by hydraulic cylinder |
Cooling System | Built-in coolant pump |
Machine Weight | 1,370kg to 22,000kg (±5%) |
Certification | CE Certified |
Warranty | 1 Year comprehensive coverage |
Key Advantages
CNC Precision Length Measurement: Equipped with an optional mechanical length measuring system for precise length cutting, ensuring zero length tolerance and superior cutting quality regardless of pipe material.
High-Speed Cutting Efficiency: Achieves cutting times of ≤2 minutes per pipe cut (DN200 Sch40), significantly accelerating production throughput.
Automatic Hydraulic Clamping: Both sides centering clamping via hydraulic cylinder ensures secure and stable pipe holding during cutting operations.
Stepless Speed Adjustment: Variable band saw speeds from 15 to 80 m/min allow optimal cutting performance across different materials and wall thicknesses.
Heavy Wall Thickness Capability: Specifically designed for projects with a majority of standard wall thickness and heavy wall thickness pipes, including stainless steel, duplex stainless steel, and alloy steel.
CE Certified Quality: Passed CE certification for safety and compliance, meeting international industry standards.
Customizable Options: Available in Red, Green, or customized colors to match your facility requirements.
Reliable After-Sales Support: Comprehensive 1-year warranty and quality assurance services.
Application Fields
1, Pipe Spool Fabrication: Ideal for pipe spool fabrication lines in workshops and fabrication yards.
2, Pipeline Construction: Suitable for onshore and offshore pipeline construction projects.
3, Oil & Gas Industry: Widely used in oil storage tank construction and gas plant piping systems.
4, Petrochemical Plants: Applicable for heavy wall thickness and standard wall thickness piping in refining and chemical facilities.
5, Power Generation: Used in power plant piping systems and clean energy projects.
6, Industrial Production Lines: Designed as one-line equipment for automated pipe prefabrication production lines.
