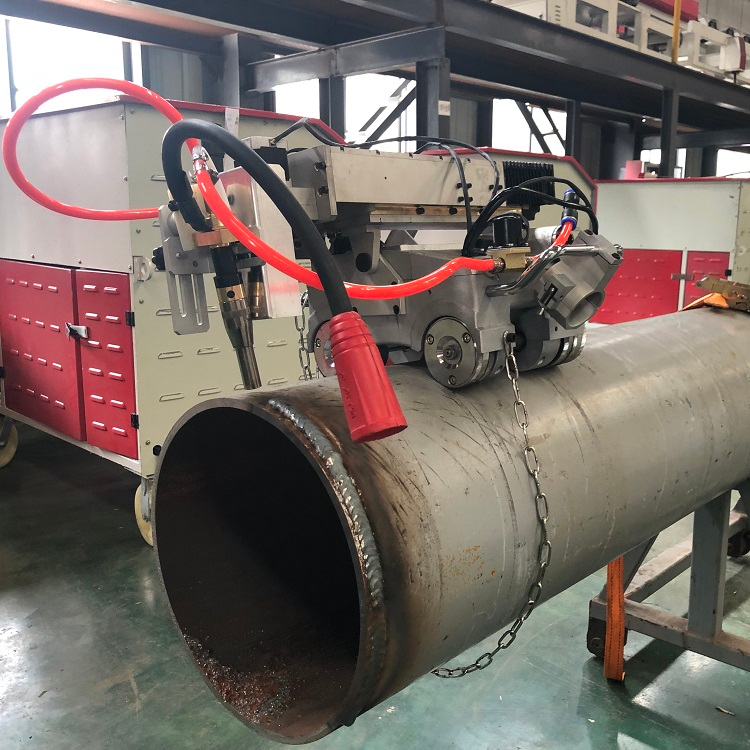

WINCOO ENGINEERING CO.,LTD has developed a fully automatic welding carriage specifically designed for pipe and pipeline applications. This advanced system performs all-position welding, capable of welding seamlessly at any point around the pipe‘s circumference—including flat, horizontal, vertical, or overhead positions. The system operates on the principle of “pipe fixed, welding carriage walking,” enabling all-position automatic pipe welding with high efficiency and low-cost CO2 gas shielded welding processes.
| Parameter | Specification |
|---|---|
| Control System | Programmable Logic Controller (PRC/PLC) |
| Welding Process | MIG/MAG/CO2 gas shielded welding |
| Suit able Diameter | ≥150mm |
| Wall Thickness | 1.3–30mm |
| Suit able Materials | Carbon steel, stainless steel, alloy steel, low temperature steel |
| Non-magnetic Material | Requires trolley track |
| Suit able Wire | Solid wire or flux-cored wire, Φ1.0–1.6mm |
| Operating Temperature | -20℃ to +45℃ |
| Ambient Humidity | 20–90% (non-condensing) |
| Shielding Gas | CO2 or 80% Ar + 20% CO2 mixture |
| Applicable Positions | Full position welding (including filling and capping) |
The WINCOO automatic orbital welding machine carriage delivers multiple significant benefits that transform pipeline welding operations:
Reduced Labor Intensity & Improved Working Environment: The carriage eliminates the need for workers to operate in hazardous positions, such as elevated work at heights or confined spaces.
Superior Productivity: Automatic welding achieves approximately 1.5 times the efficiency of manual welding, delivering substantial gains in production speed.
Exceptional Weld Quality: Manual operations typically have a defect rate of around 20%, whereas the automatic welding carriage eliminates welding defects caused by human factors, achieving near-zero defect rates.
Enhanced Comprehensive Benefits: With improved efficiency and drastically reduced defect rates, the carriage delivers comprehensive benefits nearly 200% higher than manual welding.
High Degree of Automation: Ensures welding quality stability throughout extended operations, delivering consistently reliable results with minimal variation.
User-Friendly Operation: The system requires no highly skilled technical workers, making it accessible for broader workforce deployment while maintaining quality standards.
Lightweight & Portable Design: The small size and light weight make installation and movement simple, even for unskilled workers.
Permanent Magnet Installation: Prevents welding line disconnection during the welding process, ensuring uninterrupted operation.
The WINCOO PLC-controlled automatic all-position pipe welder is widely utilized across numerous heavy industries and critical infrastructure projects:
Oil & Gas Industry: Long-distance transmission pipeline construction, both onshore and offshore;
Petrochemical & Chemical Industry: Process piping for refineries and chemical plants;
Power Generation: Thermal power plants, fossil fuel facilities, renewable energy piping systems;
Shipbuilding & Marine Engineering: Piping systems for vessels and offshore platforms;
Municipal Engineering: Municipal pipeline installations and water supply systems;
Industrial Construction: Steel structure fabrication, pressure vessels, and boilers.
The system is suitable for all kinds of long-distance pipeline welding joints, thermal pipe welding joints, buried pipe joints, and process pipe welding joints, operating safely in both indoor and outdoor environments. For non-magnetic materials such as stainless steel, an optional trolley track must be equipped, while carbon steel, alloy steel, and low temperature steel can be welded directly using the magnetic adhesion system
