Automatic All Position Pipe Orbital Welding Machine for Pipeline Construction Solution

Pipe fixed and welding trolley walking are adopted to realize automatic all-position welding. High-efficiency and low-cost CO2 gas shielded welding is adopted for welding process.
Availability:
Quantity:
  • WINCOO-II
  • WINCOO
Product Application

Product Description

WINCOO-II Pipelines all position automatic welding machine is widely used in petroleum, petrochemical, chemical, thermal, gas, Marine engineering, municipal pipelines all position automatic welding in all walks of life, such as using pipe fixed tube, welding carriage to walk the way of all position automatic welding, the welding process with high efficiency and low cost of melting polar gas shielded welding;

orbital welding machine

All-position welder is mainly characterized by light and portable design, especially suitable for automatic pipe welding on the construction site, with the characteristics of easy to learn, fast welding speed, high production efficiency, good welding mechanical properties, low labor intensity and so on;

Product Application

Workpieces applicability is wide and more than 150 mm diameter Φ pipes are applicable, without welding thickness limitation in theory, thick tube can use multilayer multiphases welding, welding such as: pipe - weld pipe, pipe, elbow, tee.

Apply to the workpiece
Suitable material                     Carbon steel, stainless steel, alloy steel, low temperature steel, etc. Non-magnetic material should be equipped with trolley track
Thickness 3-30mm
Diameter ≥150mm
Applicable wire Solid wire or flux-cored wire, welding wire diameter Φ 1.0 1.6 mm
Applicable position Full position welding of pipeline, including filling and capping; If argon arc welding is required, it shall be done by manual
Application weld joint Pipe - weld pipe, pipe, elbow, tee
Applicable conditions All kinds of long distance pipeline welding joints, thermal pipe welding joints buried pipe or process pipe  welding joints, whether indoor or outdoor can be safe operation
Applied environment
Location Indoor and outdoor
Environment tempera ture                   -20ºC--45ºC
Ambient humidity 20-90% (no dew)
Shielding gas CO2 or 80% Ar+20%CO2 mixture
The welding quality
Appearance of weld molding, no porosity, slag inclusion, incomplete fusion and other phenomena
To meet the requirements of pressure test, impact test, tensile test, bending test and other mechanicalproperties
Welding process
CO2 or Ar and CO2 mixed gas shielded welding, solid wire or flux cored wire welding

orbital pipe welding machine


Product Function

The full-position automatic welding machine trolley can realize constant speed walking along the outside diameter of the pipe, up and down step adjustment of the height of the welding gun, fine tuning of the welding gun, left and right swing of the welding gun, left and right welding stay of the welding gun, welding current and voltage control.

1, Full position automatic pipeline welder adopts advanced design concept and motion control technology;

2, Control mode: microelectronic PCB board + high-definition LCD screen + intelligent waterproof soft button control;

3, Crawling drive: constant torque motor + high precision planetary reducer + worm gear and worm drive;

4, Swing drive: stepper motor + high precision planetary reducer + high precision linear slider;

5, Height adjustment of welding torch: stepper motor + high precision planetary reducer + high precision linear slide rail;

6, Trolley structure: frame structure, made of aviation aluminum alloy;

7, Control features: high-definition LCD screen input parameters, realization of pipe 360 ° 12 welding range, accurate setting each interval of welding technology, digital integrated circuit with CPLD microelectronics and the FPGA chip as the core, the implementation of various motor movement parameters and precise matching of welding current, welding voltage, etc;

8, Welding power supply: imported from Sweden issa digital gas welding power supply, to achieve the welding material in the welding pool of accurate transition control;

Product Features

1, The main body of the crawler trolley is made of aviation aluminum alloy, with an overall weight of about 14KG, which is convenient to carry in site construction, light in structure and high in strength;
2, The main design size of the crawler trolley is compact, and the rotating space within 300mm around the pipeline can meet the requirement of rotary welding;
3, The walking motor, the oscillating motor and the raising motor of the crawler are all equipped with an orthogonal encoder to achieve position feedback and speed feedback, ensuring accurate position positioning accuracy and speed accuracy, as well as better dynamic performance and output torque;
4, welding gun swing and position adjustment using stepper motor, stepper motor can achieve accurate positioning characteristics, to ensure the width of swing, residence time and high and low attitude control accuracy;
5, The welding power supply adopts digital gas shielded welding power supply, and all welding parameters adopt digital processing, so there is no need for manual intervention in the welding process.

Product Performance Advantages

1, The LCD screen + intelligent waterproof soft button control, used for welding program preset, display and parameter fine-tuning, hand-held control box with waterproof design to avoid sweat into the function failure;
2, We developed a new generation of all-position automatic welding machine, crawling trolley walking using our company's special development of constant torque motor drive, whether downward welding or upward welding, can maintain the speed of crawling welding constant, greatly improve the quality of welding stability;
3, The fourth generation wire feeding machine, wire feeding rolls, special welding torch directly integrated installation on the trolly, such as more compact structure, adopts the design of the cable without welding torch, welding torch, wire feeding machine, all in a car, does not exist when welding torch wire bending problems, greatly improve the welding electric arc stability, at the same time by reducing the wire feeding machine parts made of independent equipment overall quality lighter;
4, Using CPLD microelectronic digital integrated circuit and FPGA chip as the core controller, to achieve the control of the motor, I/O interface control and all the operations. FPGA chip's high speed operation and timely sequence logic function performance ensure that each motion control and related operation can be completed in a very short time;
5, With X axis straight pendulum and two axis composite pendulum function, regardless of wall thickness, wall thickness, groove girth weld or fillet weld can achieve excellent welding quality;
6, High clarity LCD screen page in the face of "welding parameters setting page" and "monitoring page" to distinguish, to facilitate the setting of process parameters before welding, welding finished switching to the "monitoring page" for real-time observation of welding parameters dynamic, at the same time effectively avoid the welding process in the wrong operation.

Product Parameter

A. Mobile welder storage box

It is used to store all components and tools such as welding power supply and trolley, which is convenient for on-site management and transfer between projects.  Car body base is equipped with universal wheel, which is convenient for on-site movement and storage.
orbital pipe welder

B. Pipeline automatic welding trolley

Trackless type adopts magnetic absorption on the pipeline, and automatically crawls along the welding path during welding. The installation, use and disassembly can be completed quickly and conveniently. Rail type is mainly used for welding stainless steel or non-magnetic adsorption pipeline, the track specifications according to the welding needs to be customized.

pipe welding machine

Diameter of pipe ≥Φ150mm
Structural style Magnetic trackless or trackless (material for welding that cannot be magnetically adsorbed)
Trolley drive Constant torque motor + worm gear and worm drive
Trolley walking speed regulation mode LCD screen setting + soft button adjustment
Move speed 290mm/min
Welding speed 50-290mm/min;Stepless speed regulation
Swing drive Stepper motor + planetary reducer + linear slide rail
Swing trajectory Set according to welding requirement
Swing adjustment mode LCD screen setting + soft button adjustment
Swing left and right to adjust the stroke 78mm
Swing range 0.5mm
Max swing 30mm
Swing frequency 20~60 times/min
Duration of stay  (left, right) 0~3 seconds
Swing fine-tuning offset equivalent 0.1~0.5mm adjustable
Welding gun up and down adjustment stroke 128mm
Up and down electric adjustment 58mm
Up and down manual adjustment 70m
Weight of trolley 26KG
Power of trolley 120W
Drive power source AC 24V

C. Welding Power Supply

This product is a good performance, powerful function, rich interface, easy to operate digital dc gas welding machine, it has high reliability, easy to upgrade.

Model MIG500i MIG350i
Input Input power

3 phase AC380V±20% 50/60Hz

Rated input capacity(KVA) 24.2 13.67
Power factor 0.92 0.89
Output MMA rated VRD voltage(V) 15 71
MMA max rated output(A/V) 500A/40V 350A/34V
Rated no-load voltage(V) 80 71
Rated maximum output(A/V) 500A/39V 350A/31.5V
Welding voltage range(V) 15.5-50 10-40
Welding current range(A) 30-500 30-350
Wire feeding speed(m/min) 1.5-22 2.0-22.0
Gas meter heater voltage(V)

AC36V(120W)

Output characteristics

MMA: CCMIG/MAG:CV

Environment Operating temperature range(ºC)

-10~+40

Storage temperature range(ºC)

-25~+55

Level of protection

IP23

Type of cooling Air cooling
Rated load duration(%) 50% 60%
Efficiency(%) 91% 90%
Insulation grade F F
Size(mm) 785×330×666 630x300x540
Total weight (kg) 59 43

Product Photos

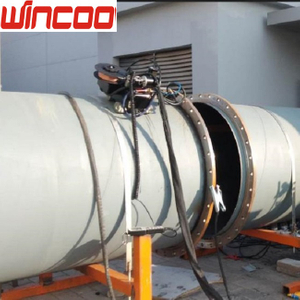

all position pipe welding machine
pipeline welding machine
