PPCW-16/24/32/40
WINCOO

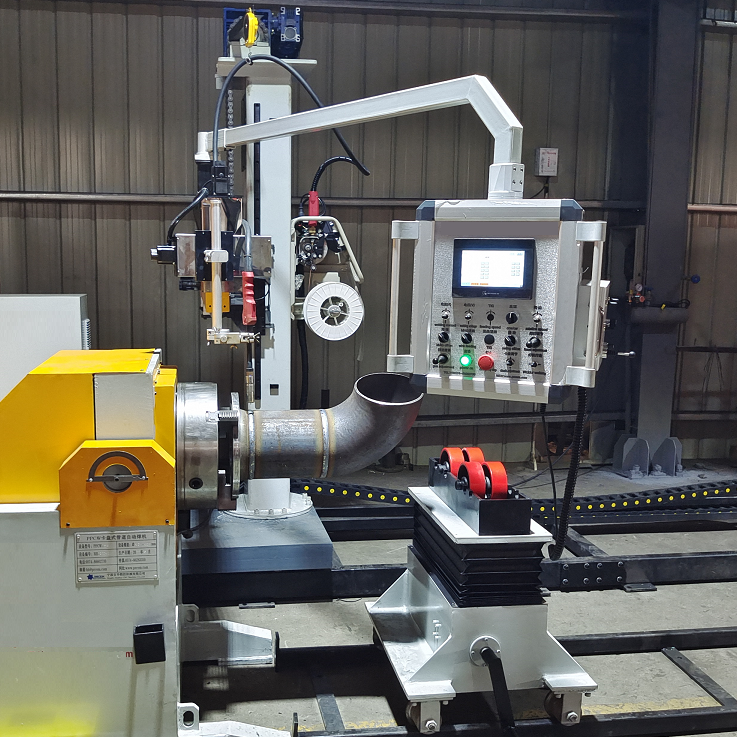

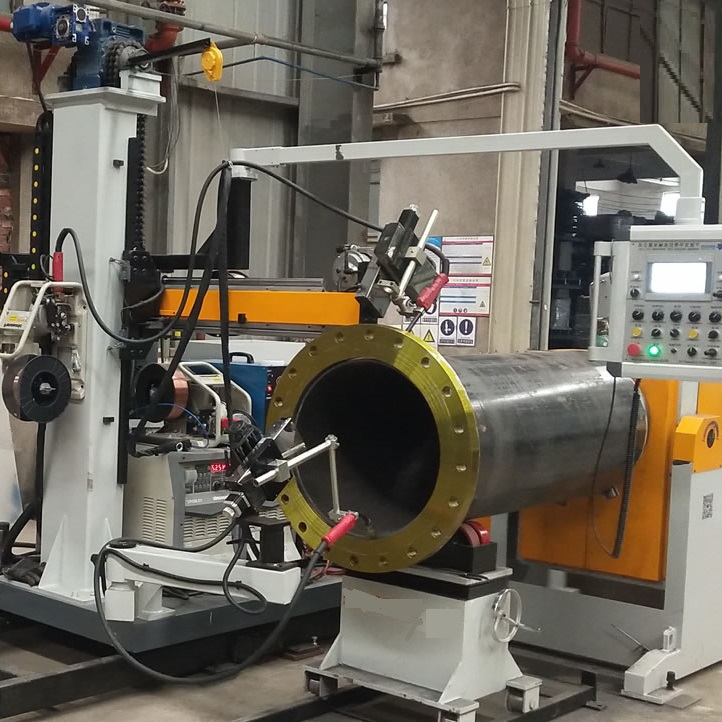

The PPCW Series represents a flexible, modular approach to pipe prefabrication welding. This system combines multiple driver hosts with a mobile cantilever welding unit. Its core design philosophy is maximizing equipment utilization and workshop productivity by allowing different driver hosts to work simultaneously—one for automatic welding with the cantilever unit while others are used for manual tasks like loading/unloading pipes, grinding, or serving as positioning rotaries for manual welding.
| Parameter | Specification |
|---|---|
| Series Models | PPCW-16, PPCW-24, PPCW-32, PPCW-40, etc. |
| Applicable Pipe Range | From DN30-400mm (PPCW-16) up to DN500-1600mm (PPCW-64) |
| Applicable Materials | Carbon steel, alloy steel, stainless steel, low-temperature steel, duplex stainless steel, titanium alloy, etc. |
| Welding Processes | TIG, Hot Wire TIG, GMAW, SAW, Plasma Arc Welding (PAW), single or combined |
| Control Mode | Centralized control via a welding control system or independent control using handheld remote pendants |
High Flexibility & Utilization: The modular, multi-station design is its greatest strength. It enables continuous, uninterrupted automatic welding by seamlessly switching the cantilever welder between driver stations, significantly boosting overall shop floor efficiency.
Wide Material & Process Compatibility: The system supports an exceptionally broad range of materials, from standard carbon steel to exotic alloys, and can be configured with various welding processes to meet specific application needs.
Excellent Weld Quality: It is capable of producing high-integrity welds suitable for pressure vessels and piping. Welds are free from defects like porosity and undercut and meet the requirements for RT/UT inspection and mechanical testing.
Advanced Control: It features a WPS (Welding Procedure Specification) expert database system, allowing for both manual control and automated program execution for repeatable results.
The PPCW Series is a comprehensive solution for large-scale, diversified pipe prefabrication centers. It is perfectly suited for contractors and fabricators serving the oil & gas, chemical, and power industries, especially those dealing with mixed materials, large diameters, and the stringent quality demands of pressure vessel and critical pipeline work.
