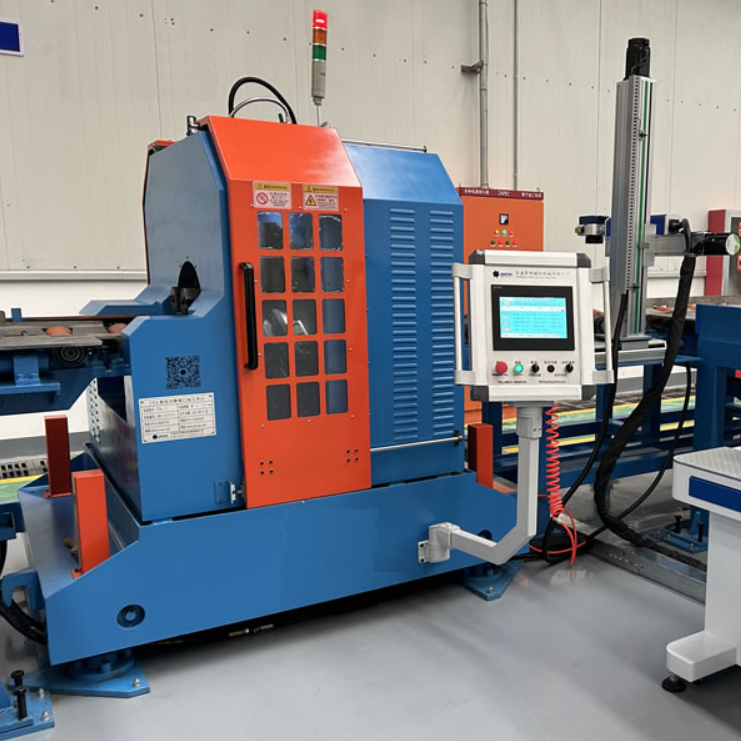

High-Speed Pipe Cutting & Beveling Machine for Pipeline Prefabrication

WINCOO ENGINEERING CO., LTD is a leading provider of pipe fabrication solutions, serving fabricators, EPC contractors, and industrial clients worldwide. Our High-Speed Pipe Cutting & Beveling Machine represents the pinnacle of efficiency in pipeline prefabrication – an all-in-one system that simultaneously cuts and bevels pipes, eliminating the need for separate processing steps.

Unmatched Speed and Productivity

Designed as an on-line production line equipment, the machine delivers exceptional throughput. Under normal working conditions, it cuts off approximately 12 pipes per hour and up to 100 pipes per day – all with two V-shape bevels completed simultaneously on each pipe. For a DN200 Sch40 carbon steel pipe, the complete cut-off with two bevels takes just 5 minutes. This dual-process capability dramatically reduces cycle time and doubles production efficiency compared to conventional single-function machines.

Precision Engineering for Superior Quality

The machine achieves cutting length tolerances of ±1mm, ensuring consistent, high-precision results across every workpiece. The machine is equipped with a PLC variable frequency control system from Siemens/Omron and a Mitsubishi touch-screen man-machine interface, making operation intuitive and parameter adjustments effortless. The four-column suspending hollow structure allows pipes to enter the machine directly, where the cutter rotates radially at high speed for circumferential cutting.

Versatile Material and Size Range

Pipe diameter: DN50–300mm (O.D. 60–325mm)

Wall thickness: 3–15mm

Materials: Carbon steel, alloy steel, stainless steel, and cryogenic steel

Bevel shape: V-bevel at 30° (adjustable with different tool bits)

Smart Features for Seamless Integration

The machine integrates seamlessly into any pipe spool fabrication line. An optional mechanical length-measuring system enables automated length positioning, cutting, and beveling in a single pass. The mechanical aligning device automatically adjusts the center elevation for pipes of different diameters, ensuring smooth material flow on the production line. Motor-driven conveying systems at both front and rear sides further optimize material handling.

Ideal Applications

The EPCBM-12Ab is the key equipment for pipe prefabrication in industries including:

• Oil & Gas

• Petrochemical and Chemical Engineering

• Power Generation and Nuclear Power Plants

• Shipbuilding and Offshore Construction

• Aerospace and Energy sectors

With only two operators required – one for machine operation and one for pipe handling – this machine maximizes labor efficiency while maintaining superior output quality.

Choose WINCOO ENGINEERING CO., LTD for reliable, high-performance pipe cutting solutions that accelerate your project timelines and reduce fabrication costs.

Contact us today to learn how the machine can transform your pipeline prefabrication line.
