80KW/100KW/120KW/160KW/200KW
WINCOO
In long-distance pipeline construction, the weld is the most vulnerable point in the system. Every girth weld must withstand decades of cyclic pressure, temperature swings, and environmental stress—and the difference between a weld that fails and one that endures for half a century often comes down to what happens before the arc strikes: preheating.
For EPC contractors operating in extreme terrain—from the frozen permafrost of the Arctic to the heat-soaked sands of desert transmission corridors—preheating is not merely a code requirement. It is a fundamental safeguard against hydrogen-induced cracking, residual stress accumulation, and brittle microstructures in the heat-affected zone (HAZ). Yet traditional methods of delivering that heat have remained stubbornly inconsistent.
WINCOO ENGINEERING CO., LTD. has developed a different approach. Not simply a heating tool, but an engineered thermal system designed for the specific demands of long-distance pipeline right-of-way construction.
Conventional flame heating—propane rings or torches—introduces several critical liabilities. Open flames in pipeline spreads create obvious safety risks, particularly in hydrocarbon-rich environments. More insidiously, flame heating produces uneven thermal profiles: hot spots adjacent to underheated zones, resulting in inconsistent HAZ properties and increased risk of hydrogen trapping. Resistance heating blankets, while offering cleaner operation, suffer from slow ramp rates, high energy consumption, and difficulty maintaining uniform contact on pipe diameters that vary across a project. Both methods create operational friction—extra handling time, additional consumables, and labor-intensive temperature monitoring.
On a pipeline spread covering hundreds of kilometers, where welding crews move across changing terrain with daily production targets, these inefficiencies compound. Every minute spent waiting for preheat temperature to stabilize is a minute not laying pipe. Every cold spot missed by thermocouple scanning is a potential integrity issue buried under the next weld pass.
WINCOO’s medium-frequency induction heating systems operate on a fundamentally different principle. Rather than applying heat to the pipe surface and waiting for conduction to carry it inward, induction generates heat directly within the pipe wall through electromagnetic fields. Operating in the optimized mid-frequency range (1–10 kHz), the system produces a deep, consistent thermal profile that penetrates the full wall thickness—critical for high-strength steels such as X70, X80, and X100, where preheat uniformity directly influences metallurgical outcomes.
The result is uniform heating around the entire pipe circumference, from the inner bore to the outer surface, with no cold spots and no localized overheating. The thermal gradient is controlled within ±1% precision through closed-loop feedback, ensuring that every weld joint reaches the specified preheat and interpass temperature consistently—weld after weld, day after day.

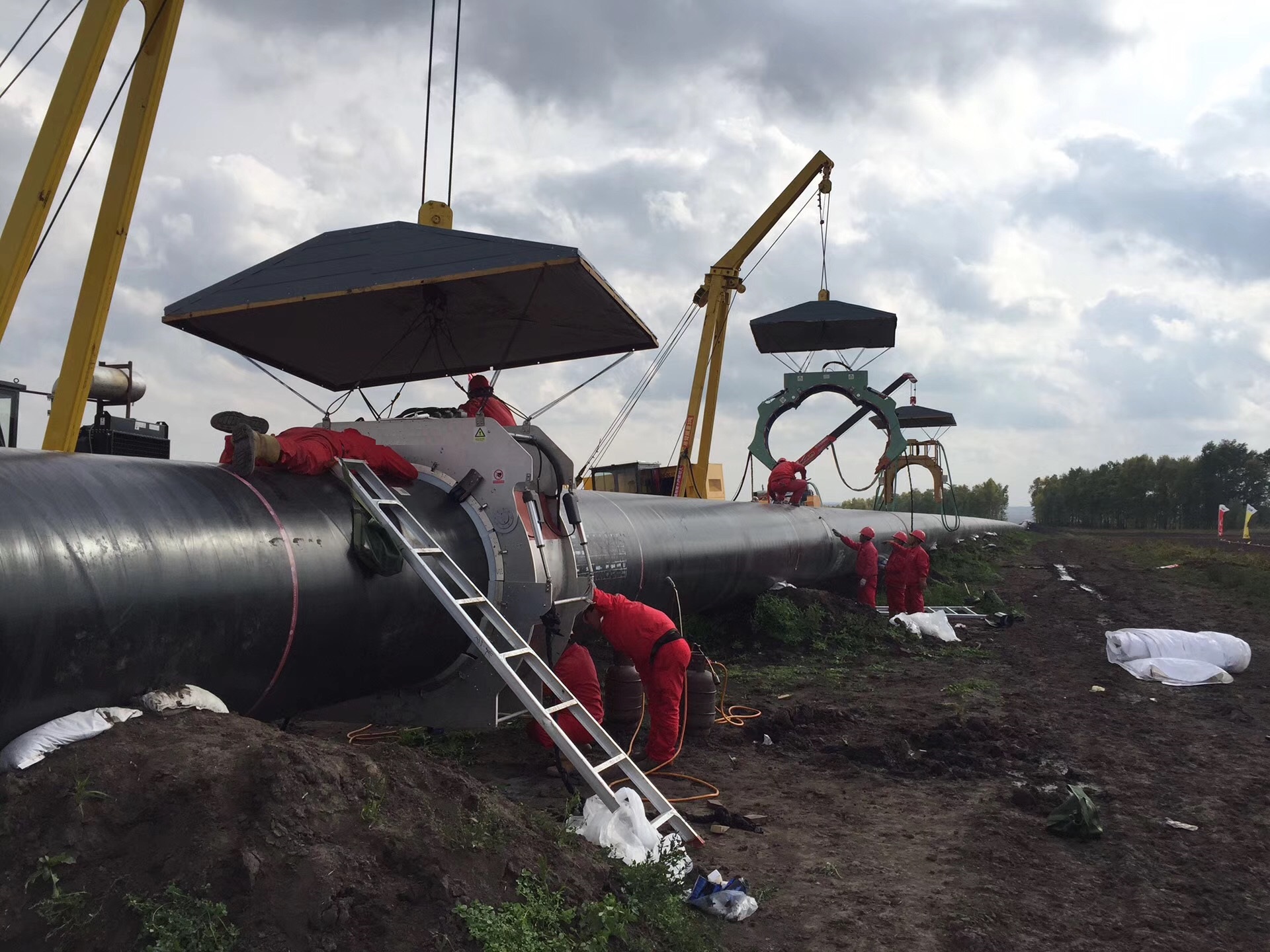

Many induction systems perform admirably in controlled shop environments. Pipeline construction occurs in the opposite of a controlled environment. WINCOO’s medium-frequency induction heaters are engineered specifically for field deployment, with design choices driven by practical construction realities rather than theoretical specifications.
The main power supply is housed in a compact, ruggedized enclosure measuring 700 × 560 × 820 mm, weighing between 200 kg and 245 kg depending on power configuration (80 kW through 200 kW output). This is deliberately portable—movable between workstations as a welding spread advances across the right-of-way. The forced air cooling system operates reliably across a working temperature range of -45°C to +65°C and at altitudes up to 3,500 meters without derating, with proper operation beyond that threshold requiring only standard derating calculations.
Input voltage tolerance of +20% to +30% accommodates the fluctuations typical of field generator power in remote locations. The IP67 protection rating means the system withstands dust, moisture, and the physical abuse inherent to pipeline construction environments—rain, mud, transport over unpaved access roads, and the inevitable bumps of crew handling.
The system achieves 95% heating efficiency, converting the vast majority of input electrical energy directly into usable heat within the pipe wall. This efficiency translates directly into reduced generator fuel consumption on site and lower overall project energy costs.

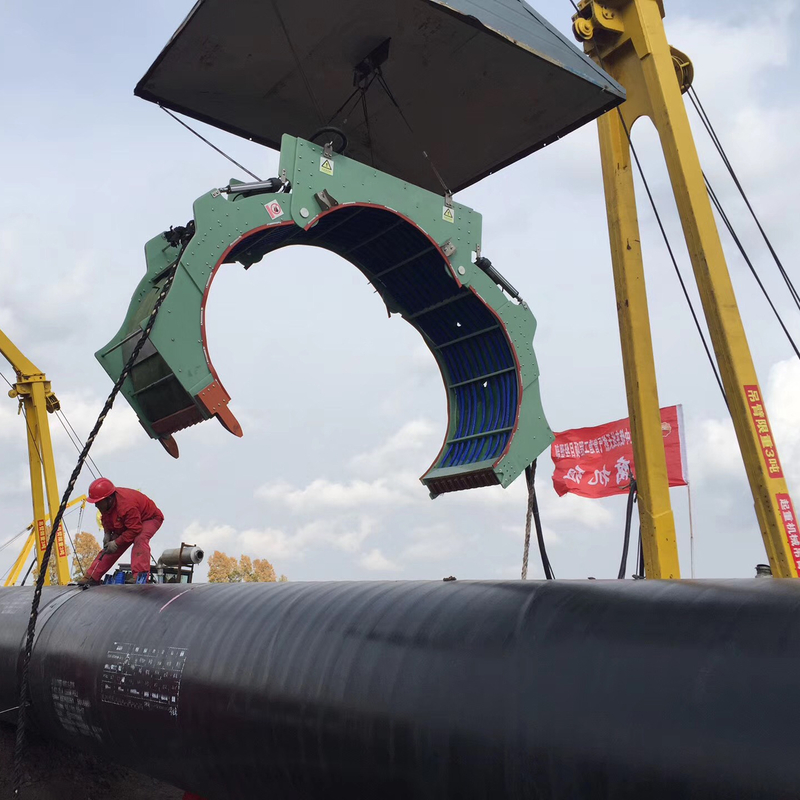

A pipeline project rarely involves a single pipe diameter. Mainline sections, tie-ins, river crossings, and station piping all present varying diameters and wall thicknesses. WINCOO’s induction heating systems accommodate this variability through customizable induction coils designed to fit the specific pipe dimensions of each project segment. Changeover between diameters is rapid, minimizing downtime and keeping welding crews productive.
The same induction system that performs preheating serves additional critical functions throughout the welding cycle. Interpass temperature maintenance ensures optimal conditions between weld passes—particularly important for multiple-pass welding procedures common on thick-walled transmission pipelines. Post-weld heat treatment (PWHT) for stress relieving can be performed with the same equipment, with precise control over heating and cooling rates documented through the system’s data logging capabilities.
This multifunction capability reduces the equipment footprint on a pipeline spread—one system handling preheat, interpass maintenance, and PWHT rather than separate specialized units.
Pipeline owners and regulatory bodies increasingly demand documented evidence that thermal parameters were met on every weld joint. WINCOO’s control systems provide programmable temperature profiling, real-time monitoring, and complete data logging for each heating cycle. Temperatures can be measured via either infrared thermometer or thermocouple, with the system’s 1% closed-loop control precision ensuring that recorded data accurately reflects actual conditions. This traceability supports compliance with API 1104, ASME B31.4/B31.8, and ISO 13847—a critical advantage when demonstrating weld quality to project owners and regulatory inspectors.
Every piece of equipment on a pipeline spread must justify its presence through tangible economic impact. WINCOO medium-frequency induction heaters deliver through multiple mechanisms: elimination of fuel gas consumables and the logistics required to supply them; reduced labor hours for preheating operations; minimized rework from inconsistent heating; and decreased generator fuel consumption through 95% heating efficiency.
The equipment itself is designed for longevity and low maintenance, with forced air cooling eliminating the complexity of liquid cooling systems and robust construction extending service life across multiple project cycles.
The ultimate test of any pipeline construction equipment is whether it works when the conditions are worst. WINCOO’s medium-frequency induction systems have been deployed on projects ranging from high-pressure gas transmission lines to heavy crude gathering systems, operating across temperature extremes from sub-Arctic to desert. CE and ISO certified, the equipment meets international standards for safety and performance, with explosion-proof compliance available for hazardous-area applications.
What distinguishes WINCOO ENGINEERING CO., LTD. in the pipeline heating equipment market is not simply the technical specifications of our induction heaters—it is the systems-level approach we bring to thermal management in pipeline construction. We do not ship a box and walk away. Our team works with contractor engineers from the planning stage, conducting heat treatment procedure qualifications (PQR) and developing tailored welding procedure specifications (WPS) that integrate induction heating parameters with the specific pipe materials, wall thicknesses, and ambient conditions of the project. On-site training ensures crew proficiency. Global technical support maintains system uptime across multiple project sites.
In pipeline construction, where the cost of failure—financial, environmental, and human—is catastrophic, contractors and owners need more than heaters. They need engineering certainty. WINCOO delivers that certainty, weld by weld, kilometer by kilometer.
WINCOO ENGINEERING CO., LTD. — Specializing in medium-frequency induction heating systems for long-distance pipeline construction. ISO and CE certified. Global service footprint.
Contact our engineering team to discuss your project specifications.
