Digital Control And Huge Power CNC Pipe End Beveling Machine for Carbon Steel Gas Plant

Name: Digital Control And Huge Power CNC Pipe End Beveling Machine for Carbon Steel Gas Plant
Brand: WINCOO
Rating: 5.0 (8 reviews)

Color:Customized
Min order:1

Availability:

Quantity:



Inquire Add to Basket

Model:
EPCBM-12Ab
Brand:
WINCOO

Product Description

Model: EPCBM-12Ab

Performance features :

* On-line Performance: good (designed as per the on-line equipment of the production line)

* Cutting & Beveling Speed: ≤5Min /one pcs pipe cut off with two bevels (DN200 Sch40,CS) , shall be approx 12 pieces of pipe cut per hour and approx 100 pcs of pipe cut off per day under the normal working condition, as well can be change the speed and speed control. Proposal to you had better operation the machines with two personal, one is operation machines, the other one assist to hoisting pipes and assistant works.

* Bevel cutting: cutting off pipe and two bevels simultaneously.

* Bevel quality: good

* Cutting surplus: it is unnecessary so the material can be saved

* Mobility: low and stationery type

* Application:Used for cutting large amount of pipes dia not larger than 12”with standard wall thickness or thin wall

thickness and beveling theＶ-shape bevel.

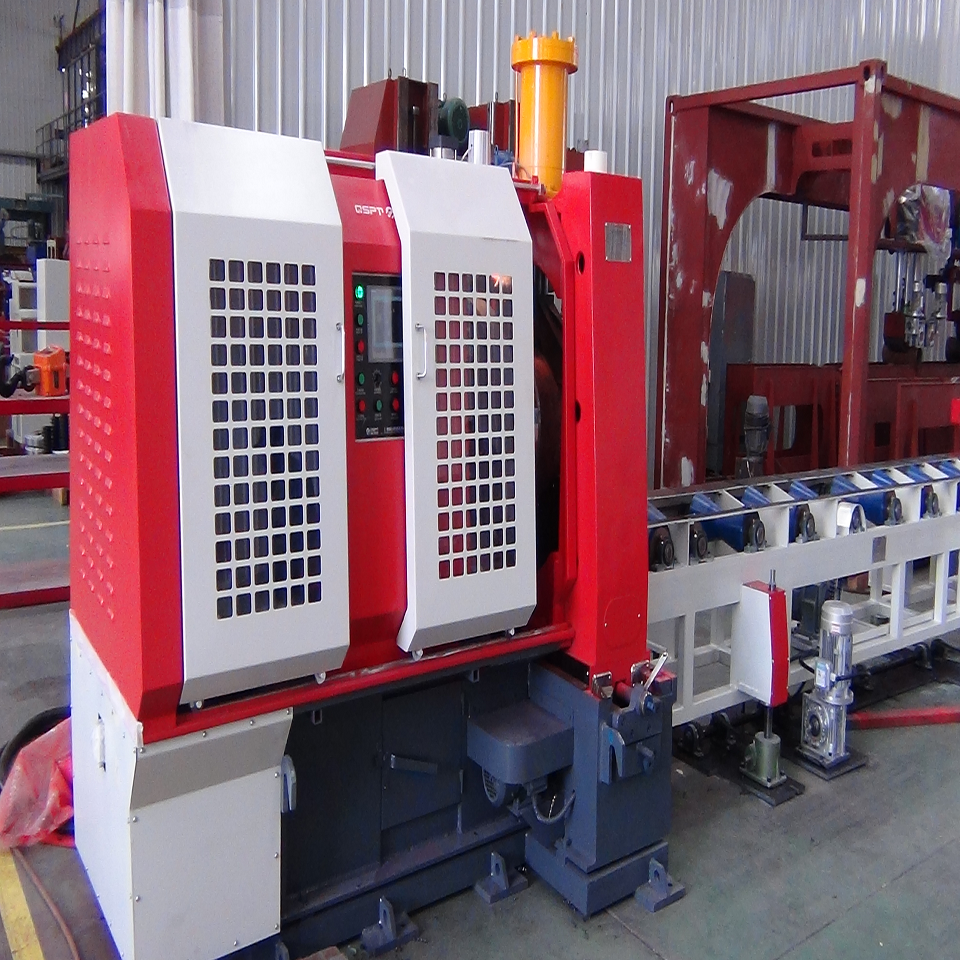

Product picture

Product parameter

* Pipe diameter applicable:DN50-300mm (O.D 60-325mm)
* Pipe wall thickness applicable: 3-15MM
* Materials applicable: carbon steel, alloy steel, stainless steel and cryogenic steel
* Bevel Shape and angle: V and 30 °(adjust to bevel angle by different special tool bits)
* Structure type: a four column suspending structure is adopted. Since it is hollow, the pipe can goes into the machine directly and fixed there. The cutter rotates and cuts the pipe circumferentially with high speed.
* Cutting direction: Radial
* Driven by: motor
* Clamping system: clamped by air cylinder or hydraulic cylinder
* Control System: PLC VF control of SIEMENS/OMRON and Touching Screen with man-machine interface of Mitsubishi
* Tolerances of length: ±1mm;
* Length-Measuring system: a mechanical Length-Measuring system could be provided if necessary so as to measuring the length of the pipes as well as cut and bevel themwith the supporting of the conveying system of the cutting and beveling machine.
* Mechanical aligning: A mechanical lifting and lowering device is equipped to adjust automatically the center elevation of the beveling machine, so the pipes with different diameters get the same bottom elevation on the production line to get the pipes in/out of the machine easily.
* Conveying system: Cutting and beveling VF conveying systems driven by motor are equipped at front and rear sides of the beveling machine if necessary.
