Automatic Straight Strip Gantry Small Metal Plasma And Flame Cutting Machine

Color:Customized
Min order:1
Material:Stainless steel
Availability:
Quantity:
  • WINCOO

Product Description

CNC flame&plasma cutting machine is a kind of high-efficient and high-precise multi-head cutting and transverse straight-end cutting,and it also can do other geometric shape cutting.The gantry type structure design can ensure the high strength and rigidity.It equipped with Japanese Panasonic full-digital AC servo driving system and German Neugart reducer,it runs steadily and cutting with a high precision.


Product parameter

Model

Driving type

Rail span(mm)

Effective   width(mm)

Cutting   thickness(mm)

Cutting   speed(mm/min)

Free running   speed(mm/min)

Vertical range   of the cutting torch(mm)

Flame cutting

Plasma cutting

Flame cutting

Plasma cutting

CNC-CGP-2500

Double side

2500

1700

6-150(Refer to   the performance of cutting nozzle)

Depend on plasma   power source





100-750(Refer to the performance of cutting nozzle
  )







Depend on plasma power source

6000

200

CNC-CGP-3000

Double side

3000

2200

6000

200

CNC-CGP-4000

Double side

4000

3200

6000

200

CNC-CGP-5000

Double side

5000

4200

6000

200

CNC-CGP-6000

Double side

6000

5200

6000

200

CNC-CGP-7000

Double side

7000

6200

6000

200

CNC-CGP-8000

Double side

8000

7200

6000

200

CNC-CGP-9000

Double side

9000

8200

6000

200

CNC-CGP-11000

Double side

11000

10200

6000

200

CNC-CGP-12000

Double side

12000

11200

6000

200

CNC-CGP-13000

Double side

13000

12200

6000

200

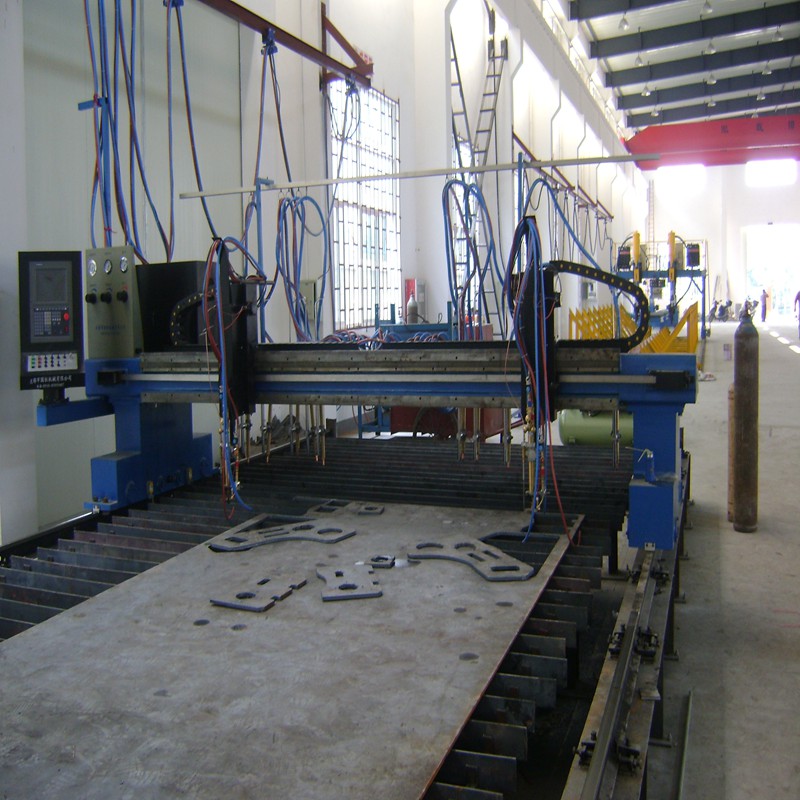

Product picture

201459161156185201442615758841 (2)
