WHL-III
WINCOO

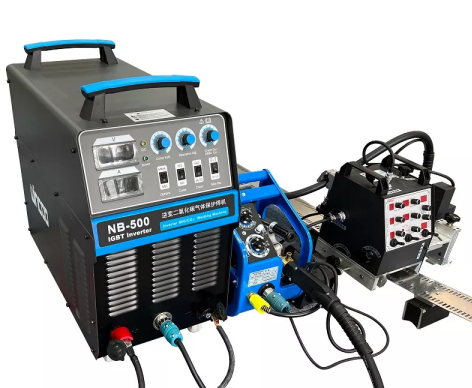

For heavy plate welding that cannot be compromised, the WINCOO Portable Welding System is the reliable on-site workhorse. It combines robust power with operational flexibility to tackle the toughest welding jobs in tank fabrication and repair. This system is built to deliver dependable performance across a broad spectrum of industrial applications, from standard construction to demanding heavy industry.
Power Source: Equipped with a professional-grade Lincoln DC600 welding source, ensuring stable arcs and deep penetration .
Material Thickness: Capably welds a wide thickness spectrum from 8 mm up to 45 mm steel plate.
Process Range: Accommodates various procedures with wire diameters from a fine 2.4 mm up to a heavy 5.6 mm.
Speed Control: Provides adjustable travel speed from 350 to 750 mm/min for precise heat input management .

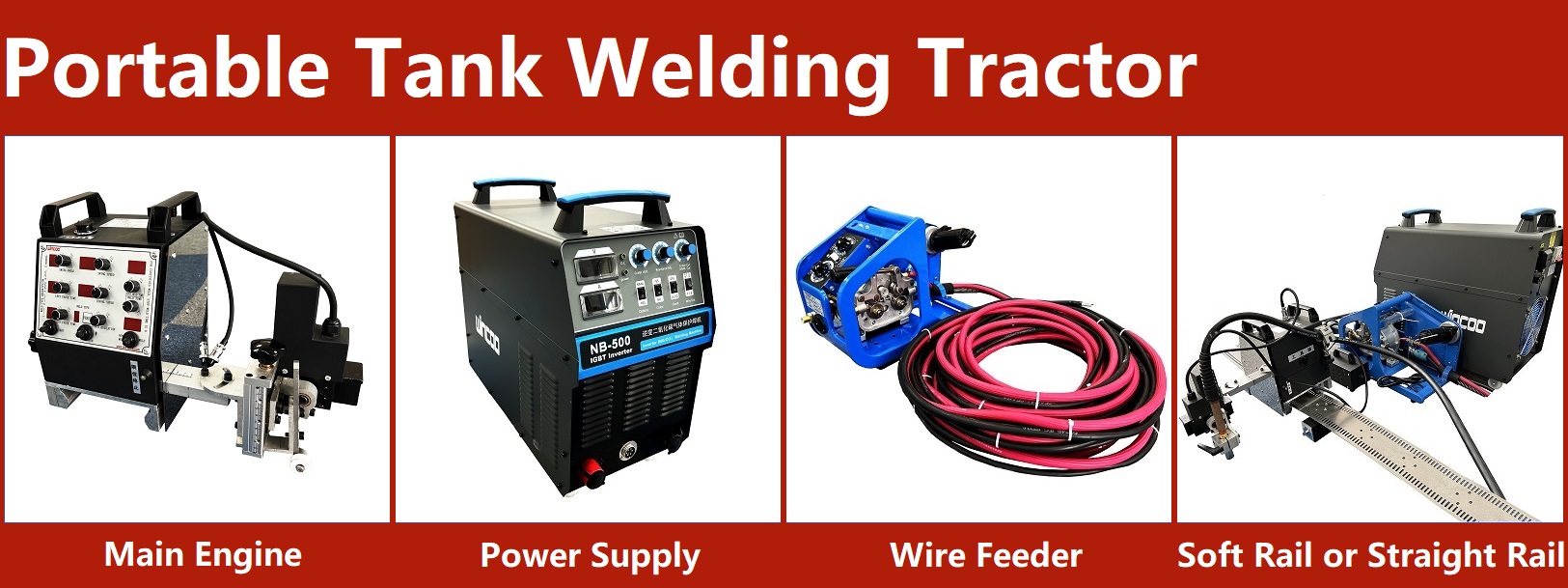

System Design: Features a modular construction (control cabinet, power cables, rail segments) for logistical flexibility.
| Parameter | Straight Rail Type | Flexible Rail Type | Notes |
|---|---|---|---|
| External Power Source | AC 220V 50/60 Hz | Three-hole connection | |
| Working Power Source | AC 20V | Use of each driver | |
| Dimensions (L×W×H) | 245×520×280cm | 245×520×290cm | |
| Weight | 8.6 kg | 10.4 kg | Main host only |
| Track Type | Linear motion guide | Self-aligning flexible slide rails | |
| Drive Mode | Gear drive | Sprocket drive | |
| Welding Speed | 0~1650mm/min | Maximum speed | |
| Thinnest Adsorption Plate Thickness | 3mm | Magnetically attractive metal | |
| Welding Gun Adjustment Range | 65mm | Inching for up and down | |
| Left/Right Adjustment | 80mm | Inching for left and right | |
| Swinging Angle | ±60° | ||
| Marching Angle | ±25° | ||
| Swinging Form | Stop left, stop right | ||
| Swinging Speed | 0-100mm/min | ||
| Left/Right Residence Time | 0-2.5s | ||
| Swinging Width | ±14mm | ||
| Center Compensation | ±5mm | ||
Heavy-Duty Capability: Engineered for continuous operation on thick-section materials, reducing the need for multiple weld passes.
Broad Process Window: The wide range of compatible wire diameters and speeds makes it adaptable to different welding procedures and standards.
Reliable & Durable: Built with industrial-grade components like hardened steel drive wheels for longevity in tough environments
This system is the go-to choice for demanding projects that require both power and adaptability.
Construction of Large Storage Tanks: For welding thick shell plates and critical seams in oil, gas, and chemical storage tanks.
Heavy Industrial Fabrication: Suitable for welding pressure vessels, boilers, and other thick-plate structures.
Cross-Industry Maintenance: A versatile asset for shipyards, power plants, and large fabrication shops performing diverse repair tasks.
