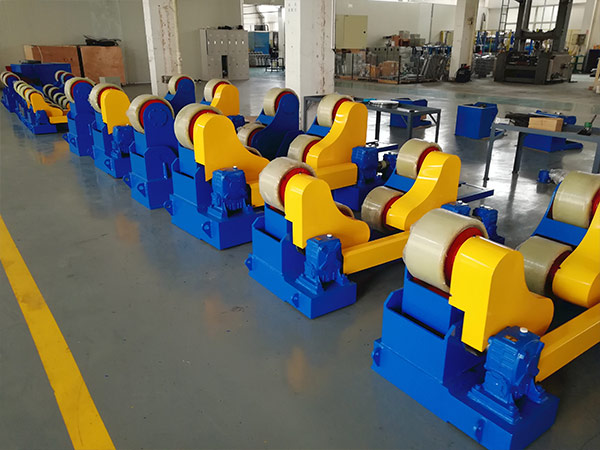

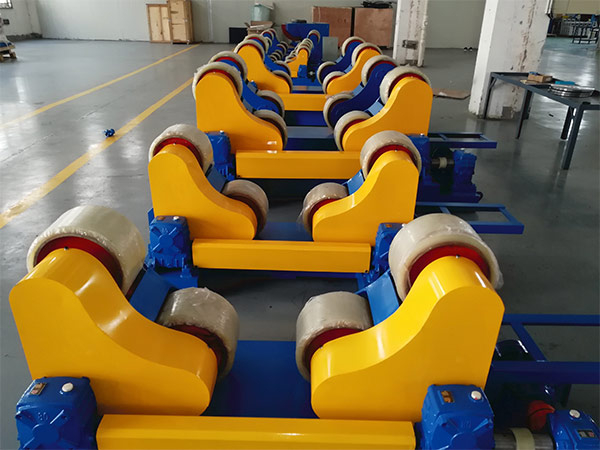

Conventional welding rotator consists of one drive unit and one idler unit to meet welding requirement of hand-welding,automatic welding requirements of hand-welding,automatic welding and automatic submerged arc welding.Roller distance is adjusted by screw arbor or bolt.It is especially suitable for cylinder with much smaller(lighter than 5 tons)or much bigger weight(heavier than 200tons).Rotators could be made of rubber,Steel Or PU,It is all on customer’s requirement.
Technical Parameters
Model | Max Loading Capacity | Applicable Workpiece Dia. | Roller Dia.&Width(mm) | Roller speed(mm/min) | Motor power(kw) | Roller Distance Adjust | Speed power | |
Rubber roller | Metal rolle | |||||||
HGK-2 | 2000 | 150-2000 | 200*100 | / | 100-1000 | 2*0.18 | Manual Lead Screw or Bolt Grading | Variable Frequency Drive(VFD) |
HGK-5 | 5000 | 250-2800 | 250*100 | 244 | 100-1000 | 2*0.37 | ||
HGK-10 | 10000 | 300-3200 | 300*120 | 294 | 100-1000 | 2*0.55 | ||
HGK-20 | 20000 | 500-4500 | 350*120 | 344 | 100-1000 | 2*1.1 | ||
HGK-40 | 40000 | 500-5000 | 400*120 | 394 | 100-1000 | 2*1.5 | ||
HGK-60 | 60000 | 500-5000 | 450*120 | 444 | 100-1000 | 2*2.2 | ||
HGK-80 | 80000 | 800-6000 | 500*120 | 494 | 100-1000 | 2*3 | ||
HGK-100 | 100000 | 800-6000 | 5008120 | 494 | 100-1000 | 2*4 | ||
HGK-200 | 200000 | 800-6500 | / | 700 | 100-1000 | 2*4 | ||
HGK-300 | 300000 | 800-6500 | / | 800 | 100-1000 | 2*5.5 | ||
HGK-500 | 500000 | 1000-8000 | / | 1000 | 100-1000 | 2*7.5 | ||
HGK-800 | 800000 | 1000-8000 | / | 1000 | 100-1000 | 2*11 |
