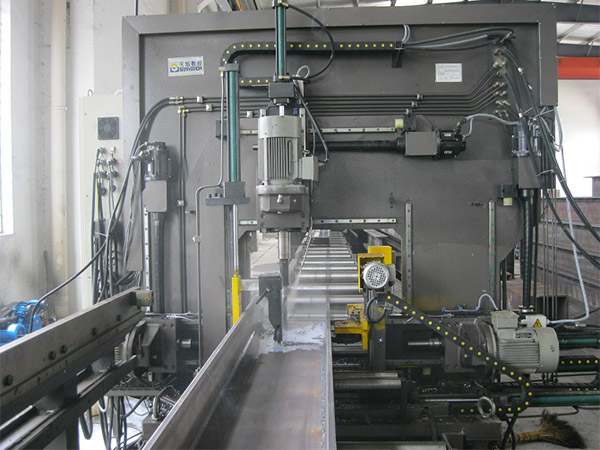

Used for the drilling processing of H-shape steel, box beam and channel steel of steel structure, bridge, three dimensional garage and petrol platform.
1.Equipped with three drilling head, the drilling procedure finished after the work piece going through the equipment.
2. Three drilling head can drill holes simultaneously, and adopt self-controlled stroke drilling head.
3. No need to set thickness of work piece and length of drilling, automatically finish the transfer of rapid feeding and work feeding, and with high efficiency.
4. CNC & PLC systems, LCD display, programming Microsoft based on WINDOWS platform, fast and convenient programming, and visual previewing.
5. Programming Microsoft is not depend on CPU equipment, can be installed in any computer to carry out programming off-site, direct copy or network transmission to the equipment to realize.
6. Each drilling head, equipped with professional main shaft speed-reducing-motor from famous products abroad.
7. Main machine, hydraulic pressure, electric components are famous products domestic and abroad.
Product Basic Parameter:
H-beams Max. (web height × flange width) (mm)
Min. length of workpiece (mm)
Max. weight of workpiece (kg)
Drilling dia. (mm)
Drilling head feeding speed(mm/min)
No. of spindle
One spindle on each of three sides (top,left,right) Total: 3 spindles
Rotation speed (stepless speed adjustment)(rpm)
Feeding movement speed (mm/min)
Max. feeding stroke (mm)
Power of each spindle (kW)
No. of CNC axis
Stroke of left/right spindles (Above vertical base-level) (mm)
Stroke of top spindle (Beyond horizontal base-level) (mm)
Total power (kW)
NC carriage feeding, 20-300mm/min
Overall dimensions (L×W×H) (mm)
Total weight (kg)
0℃ ~ 40℃
Three phase four wire system
Fluctuation of voltage:
