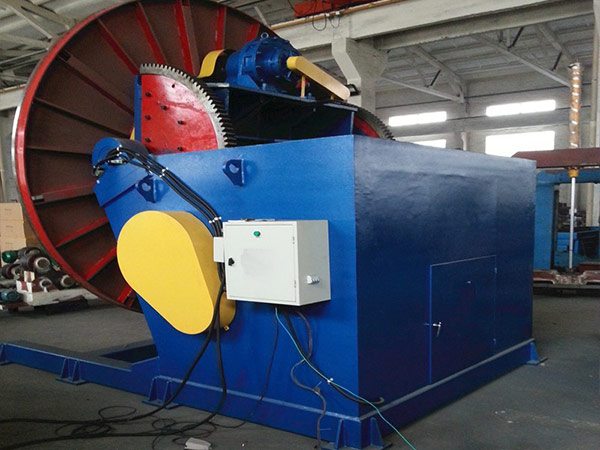

Automatic Hydraulic Welding Positioner

Availability:
Quantity:
Product Description

Welding positioners(turn table)are usually used for welding of shafts,plates and cylinders.There are T-slots for clamping and positioning of vessels.Welding table could do 360^ rotating movement and 120^ tilting movement.Pedestal of machine adapts airframe structure and its overall stability is good,no need to fix it on ground.Hand-control box is offered,being convenient.


Technical Parameters





Model



Loading Capacity(kg)



Rotary Speed

(rpm)



Tilting Speed

(rpm)



Tilting Angle(^)



Worktable Dia.(mm)



Rotation Power

(KW)



Tilting Power

(kw)



Speed adjust



Max Eccentricity



Max Gravity(mm)

ZHB-01

100

0.4-4

2

0-90

400

0.18

0.18

AC Variable Frequency Drive(VFD)

150

200

ZHB-03

300

0.1-1

1

0-90

600

0.37

0.37

150

200

ZHB-06

600

0.09-0.9

0.42

0-90

1000

0.75

0.75

150

200

ZHB-12

1200

0.05-0.5

0.4

0-120

1200

1.1

1.1

200

250

ZHB-30

3000

0.05-0.5

0.23

0-120

1400

1.1

2.2

200

300

ZHB-50

5000

0.05-0.5

0.2

0-120

1500

1.5

3

200

300

ZHB-100

10000

0.05-0.5

0.2

0-120

2000

3

4

200

400

ZHB-150

15000

0.04-0.4

0.15

0-120

2200

4

7.5

200

500

ZHB-200

20000

0.04-0.4

0.15

0-90

2500

5.5

11

200

600

ZHB-300

30000

0.03-0.3

0.15

0-90

3000

5.5

15

200

650

ZHB-500

50000

0.02-0.2

0.06

0-90

4000

11

18.5

200

800


Note:

1. Three jaw&four jaw chuck could be offered

2. Rotation speed control could adopt DC or servo control,the scope could be 100 times

3. ZHB-01&ZHB-03 could be manual tilting
