Automatic Butt Fillet Welding Machine for Tank

Availability:
Quantity:
Product Description

Master Frame
1. Master frame of the girth welder is constructed of structural steel and square tube members.
2. Erection Method: Bottom-to-Top
3. Min Diameter: Φ5.0m
4. Shell Width: Bottom-to-top 1.5-3.0m

Dual Motor Drive

1. The dual AC motor design allows for constant travel across the entire tank circumference. When fit up is not quite perfect or there is an uneven surface for the machine to travel, the dual motors will power the machine across the imperfection. This design will reduce the amount of time required to repair weld defects and will decrease the overall tank erection costs. The dual motors are controlled by one easily
2. Programmable frequency inverter.

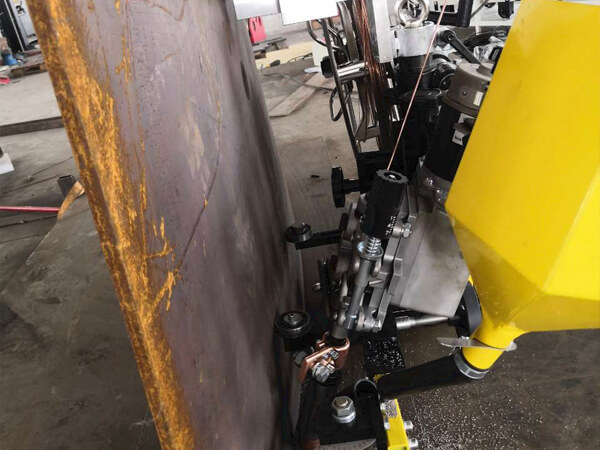

Power Source and Wire Feeder
1. The welding equipment supplied is the Miller HDC1500DX control and RAD400 weld head fitted with nozzle and wire rolls. Wire reel(27.2kg)will be supplied with equipment too.
2. Power source : SubArc DC800,CE
3. HDC1500DX Welding Progress Control
4. RAD400 Wire Feeder

Model

MLTW-P/J

Manufacturer

WINCOO

Factory Location

South of Times Avenue, Liuhe Economic Development Zone, Nanjing City(211507),Jiangsu Province, P. R. China

Welding Currency

100-1250A

Welding Voltage

20-45V

Welding Speed

200-650mm/min

Power Input

380/3PH/50Hz

Rated power

25kw

Groove

Square groove/Single V groove /Lap joint

Position

Flat/Fillet weld

Full traveling speed

1000mm/min

Tank Dia

5.0m and above

Wire Dia

Φ2.4mm-Φ4.8mm

Torch adjustment

3 axis

Torch up/down adjustment

±25mm

Torch fwd/rev adjustment

±25mm

Capacity of flux container

10Kg

Welding Process

SAW

Plate sickness

6mm and above
